ペリクルビームスプリッター用キネマティックマウント
- Mount Ø1/2" and Ø1" BP-Series Pellicles
- 3/16"-100 TPI or 1/4"-80 TPI Hex Adjuster Screws
- Hardware Steel Inserts at Kinematic Contact Points
- Ø1" and Ø2" Versions Feature Removable Adjuster Knobs

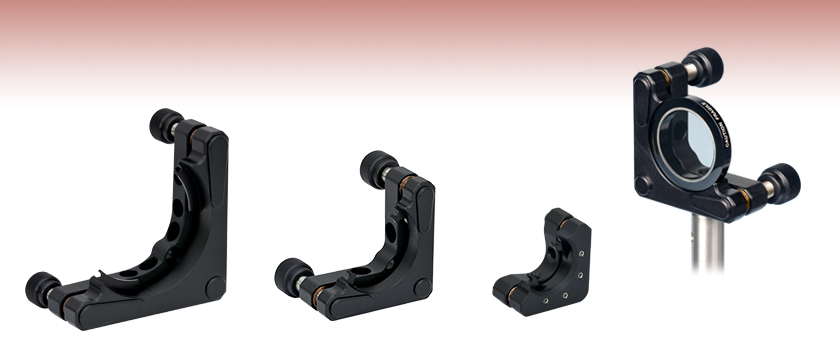

KM200BP
KM100BP
KM05BP
BP133 Not Included
KM100BP
Mounted with BP133
Application Idea
Please Wait
特長
Ø12.7 mm(Ø1/2インチ)、Ø25.4 mm(Ø1インチ)、50.8 mm(Ø2インチ)のペリクルビームスプリッタ向けに、当社のミラーマウントのキネマティックマウント調整機構と、使いやすい前面プレート設計を組み合わせたKM05BP/M、KM100BP、KM200BPをご用意しています。前面プレートには、ペリクルビームスプリッタをマウントに取り付けるための#2-56キャップスクリュ(付属)用の貫通スロットが2つあります。これらのマウントには、リン銅製の高品質3/16”-100 TPIまたは1/4”-80 TPIアジャスターネジ(下表参照)が付いており、摩耗しやすい挿入部分は補強されています。すべてのアジャスタはつまみネジ型六角レンチHKTS-5/64などの2 mm六角レンチで作動させることができます。別売りの青銅製固定ナットLN19100またはLN2580を用いて3/16”-100 TPIまたは1/4”-80 TPIアジャスタを位置確定後にそれぞれ固定することができます。ポスト取付けとして、Ø12.7 mm用にはM4 x 0.7タップ穴、Ø25.4 mmおよびØ50.8 mm用にはM4ザグリ穴が付いています。マウントは黒色アルマイト加工されています。
Item # | Angular Range | Resolution | Adjustment Screws | Mounting |
---|---|---|---|---|
KM05BP | ±4° | 13 mrad (0.75°) per rev | 2 x 3/16"-100 TPI | Two 8-32 or M4 x 0.7 (/M version) Tapped Mouting Holes |
KM100BP | ±4° | 8 mrad (0.5°) per rev | 2 x 1/4"-80 TPI | Two #8 (M4) Counterbored Through Holes |
KM200BP | ±3° | 5 mrad (0.3°) per rev | 2 x 1/4"-80 TPI | Two #8 (M4) Counterbored Through Holes |
Posted Comments: | |
manivannan rajendiran
 (posted 2023-12-26 15:09:09.88) i cant able to download you product in site and thru email also. can you plz sent the step file thru my mail. jdelia
 (posted 2023-12-26 04:30:29.0) Thank you for contacting Thorlabs. I have reached out to you directly via email to share the STEP file for KM05BP. |
