小型回転ステージ、精密アジャスターネジ付き
![](https://www.thorlabs.co.jp/Images/GuideImages/13462_CompactRotationStage_1.jpg)
- Continuous 360° Manual Rotation
- Fine Adjuster Screw Provides ±6° Fine Adjustment
- Mount Horizontally or Vertically
PR005
Compact Precision Rotation Stage
Back View
![](../../images/loading-red.gif)
Please Wait
Specifications | ||
---|---|---|
Item # | PR005(/M) | |
Coarse Rotation Range | 360°, Continuous | |
Fine Adjustment Range | ±6° | |
Horizontal Load Capacity | Overall: 25 lbs (11.4 kg) Fine Adjustment: 3.75 lbs (1.7 kg) | |
Platform Diameter | 1.00" (25.4 mm) | |
Platform Height | 0.75" (19.1 mm) | |
Platform Mounting Holes | 8-32 (M4) (1 Place) 4-40 (M3) (8 Places) | |
Base Dimensions | 1.50" x 1.50" (38.1 mm x 38.1 mm) | |
Base Mounting Holes | Counterbores for 1/4"-20 (M6) Cap Screws (4 Places) |
特長
- 360° の連続粗動回転
- ±6° の微調整
- 5°毎に目盛をレーザ刻印
- オプトメカニクス製品用のタップ穴
- 耐荷重11.4 kg
当社の小型回転ステージPR005/Mを使用して、小型のオプトメカニクスアセンブリを精密回転させることができます。固定ネジを緩めると、ステージを手動で連続的に滑らかに回転させることが可能で、マウント側面の5°単位の目盛を使って回転を測定することができます。「ENGAGE FINE ADJUST」と記載されているネジを締め付けて粗動を防ぎ、微調整ネジを使用して±6°の微調整を行うことができます。「LOCK」と記載されているネジを締め付けると、ステージを完全に固定して動かなくすることができます。これらの3種類のネジには2.0 mmの六角レンチまたはボールドライバをご使用いただけます。

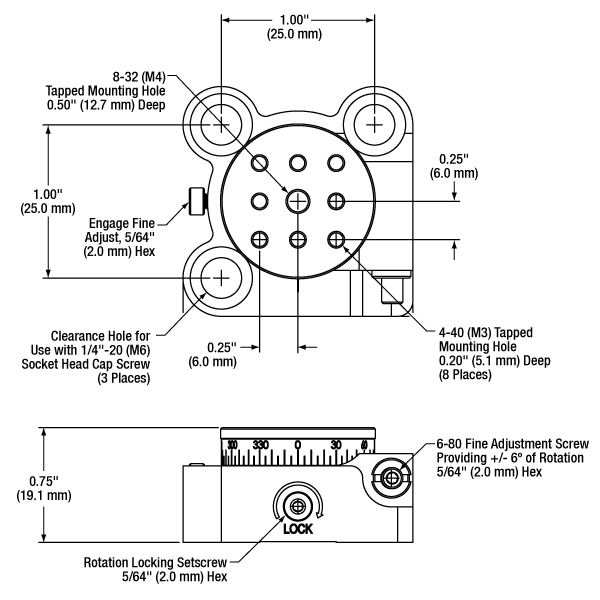

右図のように、この回転プラットフォームには中央にM4タップ穴が1個、その周りにM3タップ穴が8個あります。 また、3個のM6取付け用ザグリ穴を使用して光学テーブルまたはブレッドボードに取り付けることもできます。
ステージPR005/Mの耐荷重は精密回転マウントPR01/Mと同じですが、設置面積は大幅に小さくなっています。
Posted Comments: | |
user
 (posted 2024-08-05 15:01:21.07) CAD model has incorrect hex key size (1.69 mm vs 2 mm). Caused us to purchase the incorrect interface cdolbashian
 (posted 2024-08-14 11:01:45.0) Thank you for reaching out to us with this mistake. At the time of posting, we are working on updating our 3D model to match the product page description and Auto CAD pdf, where we list 2mm for the hex size. I apologize for any inconvenience this has caused. user
 (posted 2021-10-29 08:51:46.387) Dear Sir or Madam, kindly provide information regarding the angular resolution of your fine hex adjuster in this setup, e.g. degrees of rotation per full rotation of the screw. Thank you in advance. azandani
 (posted 2021-11-09 02:34:08.0) Hello, thank you for contacting Thorlabs. Unfortunately, we do not have a spec regarding the angular resolution per rotation of screw as it is not a constant value. This is because the contact point for the adjuster screw inside the stage moves on a radius. Thomas Schönfelder
 (posted 2020-11-30 08:13:53.24) Dear Sir or Madam,
could you please tell me the approximate max. horizontal load if we we use the PR005/M upside down?
We would like to flip the device (180°), that means that there will be a pull force instead of a push force on the bearings.
Kind regards,
Thomas Schönfelder llamb
 (posted 2020-12-07 10:46:55.0) Hi Thomas, thank you for contacting Thorlabs. While we do not have a formal spec for upside down loads, you can expect a similar load capacity as when the stage is mounted flat on a table. I have reached out to you directly to discuss your loading conditions further. |
