バタフライ型パッケージ用半導体レーザーマウント


  • Zero Insertion Force (ZIF) Sockets
  • Easy Integration with Thorlabs’ Current & TEC Controllers
  • Compatible with One & Two Port Devices

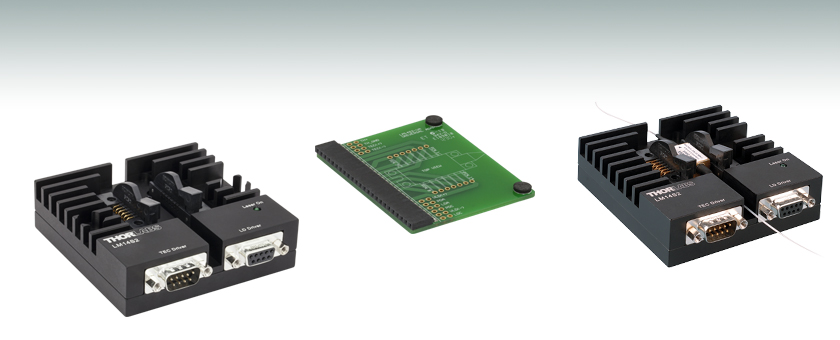

LM14S2

Universal 14-Pin Butterfly Laser Diode Mount

LM14S2-UA

Additional User-Configurable Pin-Out Card
(One Included with LM14S2)

LM14S2 Shown with a Two-Port
Electro-Optic Device

Related Items


Please Wait
Feature Comparison of Butterfly Laser Mounts
Item #LM14S2aLM14TSbCLD1015c
Supports Type 1 (Anode GND)
Supports Type 2 (Anode GND)
Supports Bias-T Connection--
Supports Thorlabs ULN Laser--
Integrated Laser-Case-Temperature Stabilization--
DB9 Input for Thorlabs' Laser Driver-c
DB9 Input for Thorlabs' Laser-Chip TEC Controller-c
Dedicated ULN FBG TEC Controller Input--
  • LM14S2はバタフライLDマウントで、光入出力ポート付きデバイスやバイアスTの接続にも対応します。
  • LM14TSはTECが内蔵された温度制御機能付きで低ノイズのバタフライマウントです。
  • CLD1015は、小型半導体レーザードライバで、温度コントローラおよびバタフライパッケージ用マウントも付いています。

特長

  • 14ピンバタフライ型パッケージの半導体レーザ用のマウント
  • ZIFマウントソケット
  • タイプ1、タイプ2、バイアスT付きタイプ2、ユーザ定義のピン配列
  • レーザのENABLE状態を示すLED表示

LM14S2は汎用の14ピンバタフライ型半導体レーザ用のマウントで、14ピンのタイプ1、2、またはバイアスT付きタイプ2のバタフライ型パッケージに組み込まれている半導体レーザ光増幅器、2ポートの電気光学デバイスにご使用いただけます。上面にはヒートシンクフィンと半導体レーザを組込む凹部がありa、薄型の設計となっていて、熱抵抗は3°C/Wです。LM14S2には、半導体レーザ用のTEC ロックアウト機能bがあり、温度コントローラが起動していないときには、半導体レーザをDISABLE状態にします。LM14S2は、最大5Aのレーザ電流と5AのTEC 電流を流すことができます。TECコントローラを活用するには、レーザに熱電冷却器(TEC)かサーミスタセンサが内蔵されていなければなりません。このマウントには、他にZIFソケット、リモート安全インターロック接続や半導体レーザENABLE状態を示すLED表示などの機能があります。

LM14S2は、マウント内部のコネクタ部分に取替可能なカスタムPIN設定用カードを挿入することで、多様なピン配列に対応できます。LM14S2には2枚カードが付属していて、1枚目は、予めタイプ1の励起レーザとタイプ2のテレコム用レーザに対応するように設定されています。この2つのタイプに対応するピン概略図については「ピン配列」タブ内をご覧ください。2枚目はお客さまにて設定可能なカード(LM14S2-UA)で、マウントのカスタム仕様の配線ができます。カスタム設定用カードLM14S2-UAは別途、追加購入も可能です。なおLM14S2-UAであっても、バタフライ型マウントLM14S2と共に使えるのはアノード接地の半導体レーザであることにご留意ください。

この製品は、自由なピン配置設定が可能なことに加えて、バイアスTアダプタが付属しているので、RF変調機能付きのバタフライ型半導体レーザに対応します。バイアスTアダプタにはメス型SMAコネクタがついており、500MHzまでのRF変調が可能です。内蔵バイアスTとブロッキングインダクタが組み込まれているピン配列タイプ2のレーザ用に設計されています。詳細は「ピン配列」タブをご覧ください。なお、当社のバタフライパッケージ型半導体レーザはバイアスTアダプタには対応しませんのでご注意ください。

LM14S2の各ピンは、当社の全てのベンチトップ型半導体レーザ/温度コントローラと当社のほとんどのプラットフォーム用レーザ/温度コントローラーモジュールに対応しているのでカスタム仕様のインターフェイスケーブルの必要がありません。

  • バタフライ型パッケージ用半導体レーザの取付けや設定についての詳細は、マニュアルのChapter 4をご覧ください。
  • TECロックアウトは、当社のレーザやTECコントローラをご使用いただいた場合のみ有効となり、この機能が不要な場合は簡単に無効にすることができます。
Item #LM14S2
Maximum Laser Current5 A
Polarity of Laser DiodeAnode Ground
Polarity of Monitor DiodeFloating
Maximum TEC Current5 A
Temperature SensorThermistora
Temperature Rangeb0 to 70 °C
Temperature Coefficient of Heat Sink3 °C/W
Dimensions3.50" x 3.50" x 1.31"
(88.9 mm x 88.9 mm x 33.3 mm)
Modulation (Bias-T Adapter) Specificationsc
RF Modulation Frequency100 kHz to 500 MHz
RF Input ConnectionSMA
RF Input Impedance25 Ω
RF Power (Max)200 mW or Limit of Laser Diode
  • 25 °CではTEC電流は2 A、レーザーパッケージに組み込み。
  • LM14S2が対応する温度範囲。設置される半導体レーザによって異なる可能性があります。
  • バイアス-Tアダプタはタイプ2テレコム用半導体レーザにのみ対応(詳細は「ピン配列」タブ参照)。

半導体レーザーコネクタ

Dタイプメス型

DB9 Female

Pin #Signal
1Interlock and Status Pin (LDC Specific)
2Photodiode Cathode PDC
3Laser Diode Anode LDA
4Photodiode Anode PDA
5Interlock and Status Return
6Laser Diode Voltage (-) VLD(-)
7Laser Diode Cathode LDC
8Not Used
9Laser Diode Voltage (+) VLD(+)

バイアスT変調アダプタ*

SMAメス型

SMA-female

*変調用RF外部入力100 kHz~500 MHz

TECコネクタ

Dタイプオス型

DB9 Male

Pin #Signal
1TEC Lockout (+)
2+Thermistor TH+
3-Thermistor TH_GND
4TEC (+)
5TEC (-) and TEC Lockout (-)
6Not Used
7Not Used
8Not Used
9Not Used

14ピンソケットのピン配列図

他のピン配置には、カスタム設定用アダプターカードをお使いいただけます。カードは追加でもご購入いただけます。製品の型番はLM14S2-UAとなります。

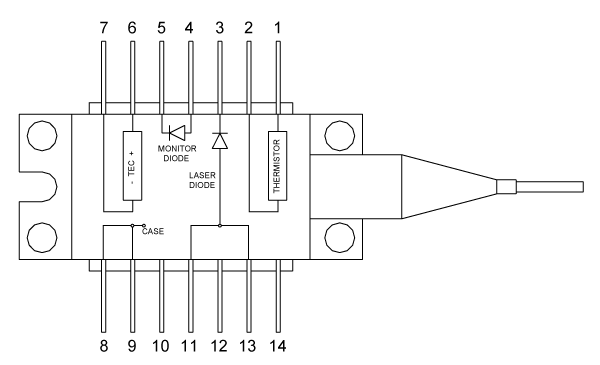

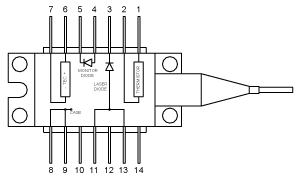

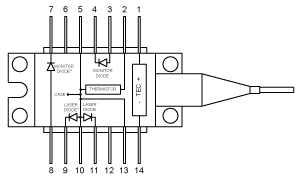

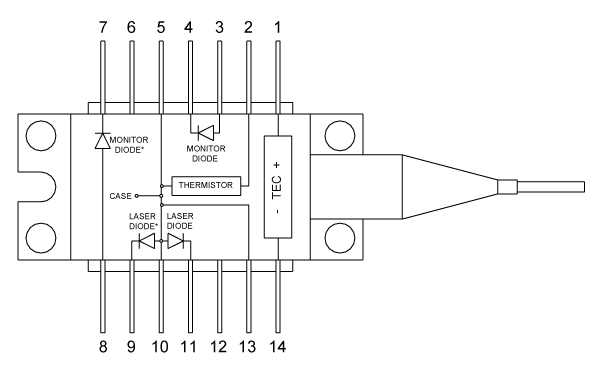

Pin to Connector Configuration for Type 1Pin to Connector Configuration for Type 2Pin to Connector Configuration for

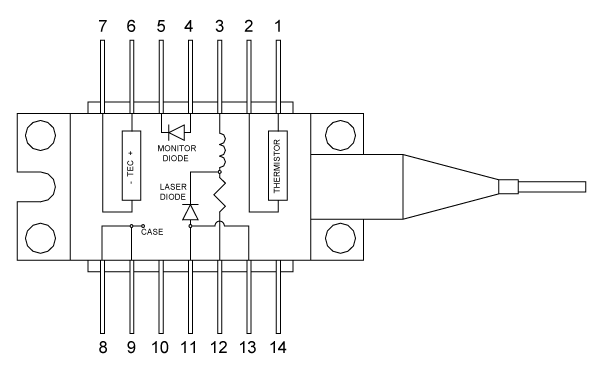

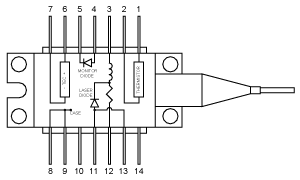

Type 2 with Bias-T

Click to Enlarge

Click to Enlarge

Click to Enlarge
1TEC Anode1Thermistor Ground1Thermistor Ground
2Thermistor2Thermistor2Thermistor
3PD Anodea3LD Cathode3LD Cathode
4PD Cathodea4PD Anode4PD Anode
5Thermistor Ground5PD Cathode5PD Cathode
6N.C.6TEC Anode6TEC Anode
7PD Cathodea7TEC Cathode7TEC Cathode
8PD Anodea8Case8Case
9LD Cathodeb9Case9Case
10LD Anode, Ground10N.C.10N.C.
11LD Cathodeb11LD Anode11LD Anode
12N.C.12N.C.12Modulation Inputc
13LD Anode, Ground13LD Anode13LD Anode
14TEC Cathode14N.C.14N.C.
  • モニタ用フォトダイオードは、ピン7と8の間、あるいはピン3と4の間に接続できます。個別のピン配列については半導体レーザの資料をご参照ください。
  • 半導体レーザのカソードはピン9またはピン11のいずれかに接続できます。個別のピン配列については半導体レーザの資料をご参照ください
  • バイアスTアダプタPCB使用時

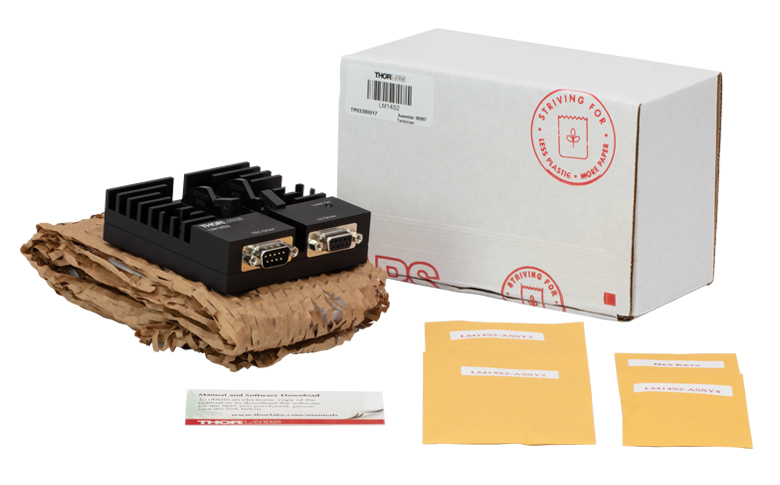

LM14S2 SmartPack Packaging
Click to Enlarge

LM14S2 Packaging

Smart Pack

Item # % Weight
Reduction
CO2-Equivalent
Reductiona
LM14S2 21.52% 30.10 kg

Smart Pack

  • Reduce Weight of Packaging Materials
  • Increase Usage of Recyclable Packing Materials
  • Improve Packing Integrity
  • Decrease Shipping Costs

Thorlabs' Smart Pack Initiative is aimed at waste minimization while still maintaining adequate protection for our products. By eliminating any unnecessary packaging, implementing packaging design changes, and utilizing eco-friendly packaging materials for our customers when possible, this initiative seeks to improve the environmental impact of our product packaging. Products listed on the right are now shipped in re-engineered packaging that minimizes the weight and the use of non-recyclable materials.b As we move through our product line, we will indicate re-engineered packages with our Smart Pack logo.

  • Travel-based emissions reduction calculations are estimated based on the total weight reduction of packaging materials used for all of 2013’s product sales, traveling 1,000 miles on an airplane, to provide general understanding of the impact of packaging material reduction. Calculations were made using the EPA’s shipping emissions values for different modes of transport.
  • Some Smart Pack products may show a negative weight reduction percentage as the substitution of greener packaging materials, such as the Greenwrap, at times slightly increases the weight of the product packaging.

Posted Comments:
Shiva Vikram Bhagavatula  (posted 2024-07-31 13:05:26.73)
The modulation of the laser diode current (for changing wavelength) with the bias tee option is highly sensitive to the smallest change in the position of the SMA cable. How do you ensure repeatability of the connection? The bias tee sits on top of the laser diode pins and the contact between the two is influenced by the weight, tension of the SMA cable connecting to the other end of the bias tee and its position.
ksosnowski  (posted 2024-08-09 05:23:43.0)
Hello Shiva, thank you for reaching out to us. The ZIF socket and the two securing screws should provide enough positive contact force to keep these pins in reliable contact. Securing the LM14S2 to the table through the mount's counterbores as well as using a cable strap like our CS1 may help with further preventing any connection issues due to strain in the cables. If any components like the socket's screws are lost we can help you get replacements. I have reached out directly to discuss your application in further detail.
user  (posted 2024-06-11 13:18:28.213)
Dear Thorlabs, We are using LM14S2 and ITC4001. When operating the diode laser, the center frequency is too unstable. It's fluctuating around 100MHz. Is there a suspected cause for this? It seems we could deliver our situation in more detail through email.
ksosnowski  (posted 2024-06-25 05:35:48.0)
Thanks for reaching out to us. The stability of the laser wavelength can strongly depend on the drive current and temperature stability, as well as the presence of any backreflections. With our ITC4001 the drive current noise is quite low however achieving good temperature stability relies on finding the best PID coefficients for your exact system and operating points. Our ITC4001 manual covers how to tune the PID of the system and I recommend using the temperature driver's software to better observe any fluctuations in the temperature over time with a plot display while PID tuning. I have reached out directly to discuss your application in further detail.
Iko Ben-Giat  (posted 2024-06-06 21:19:16.707)
Hello, We have encounter with few problems using the LM14S2 (used together with TED4005 and 3rd party Laser driver), which we hope you can help us with. 1. Using the custom Pin out configuration card, we saw that temp. tend to have higher temp. fluctuations up to +/- 0.005 degrees, while without USB it is with the spec of the TED4005 +/- 0.001 degrees. Are there any instruction for the wiring of this card (i.e. AWG, type of wiring etc.) 2.When using TYPE I setting there is a puzzling short between Pin 10 which supposed to be Anode and the case ground (pin 13) - even when using TL PN780PN laser? Is there other pin out or is ok? Appreciate prompt response Iko Ben Giat - Chief Product & Engineering iko@tera.group
jpolaris  (posted 2024-06-07 01:20:26.0)
Thank you for contacting Thorlabs. I have reached out to you directly to get clarification on your issue with temperature fluctuation. For wiring the configuration card, ideally, a solid 26 - 30 AWG insulated wire would be used for making the connections. Regarding part (2) of your message, yes, for Type 1 butterfly packages, the connections you've described are normal. I have sent you a pin diagram that should help clarify these connections.
Todd Harris  (posted 2024-04-19 10:48:59.5)
Please provide a torque specification for torqueing down the four (4) #2-56 screws that secure the 14-pin butterfly package to the heat sink.
ksosnowski  (posted 2024-04-22 03:21:34.0)
Hello Todd, thanks for reaching out to Thorlabs. For the LM14S2 and our butterfly diodes, a torque of 10~20oz·in (0.07~0.14N·m) is recommended for securing the screws.
Shiva Vikram B  (posted 2023-08-09 09:58:19.7)
We want to purchase the modulator bias tee adapter pcb separately.
ksosnowski  (posted 2023-08-18 04:17:05.0)
Hello Shiva, thanks for reaching out to Thorlabs. Yes we can offer the bias tee adapter PCB component separately as a special quote in case it's been lost or damaged. In these cases we would recommend you to contact techsupport@thorlabs.com directly, and I've reached out to discuss your application further detail.
user  (posted 2023-05-18 17:18:29.64)
Hello! We want to use LM14S2 mount with LDC8005 and TED8020, but we find that the pin configurations of LM14S2 and LDC8005 are different, the pin3 of LM14S2 is Laser Diode Anode and pin3 of LDC8005 is Laser Diode Ground, while the pin8 of LM14S2 is Not Used and the pin8 of LDC8005 is Laser Diode Anode. Do I need to swap the connection of pin3 and pin8 of the cable when using them together?
cdolbashian  (posted 2023-05-26 12:55:51.0)
Thank you for reaching out to us with this inquiry. As the butterfly diodes are Anode grounded, the pin 3 and pin 8 have identical electrical paths. You shouldn't need to swap any connectors. I have contacted you directly to discuss this in more detail.
user  (posted 2022-04-15 10:19:25.907)
Hello! Could you please tell me if the LM14S2 is thermal vacuum compatible?
cdolbashian  (posted 2022-04-20 04:40:50.0)
Thank you for reaching out to us with this inquiry. I have reached out to you directly to discuss the specific vacuum environment in which you are intending to place this device.
Ben Griffiths  (posted 2022-02-02 10:30:38.233)
Hi, I see that the bias-t provided in the LM14S2 is spec'd to 500 MHz. Ideally I would like to drive an RF signal at several GHz, do you offer a bias-t that could handle this higher rate to fit this mount?
ksosnowski  (posted 2022-03-02 11:44:48.0)
Thanks for reaching out to Thorlabs. Unfortunately we currently do not offer any drivers or mounts that can achieve these higher speeds. In the past, we have recommended using drivers and mounts offered by AV Tech (which is not affiliated with Thorlabs in any way). An alternative option to modulate at higher frequencies is to use an external source such as a LiNbO3 EO modulator. I have reached out directly to discuss your application further.
Rebekah Olson  (posted 2021-07-09 11:35:35.067)
I'd like to see a high-powered version of this mount to go along with products like the ITC4005. Some pump diodes have much thicker pins that make them incompatible with this version.
YLohia  (posted 2021-07-09 02:54:54.0)
Hello, thank you for your feedback. I have posted your suggestions on our internal engineering forum for consideration as a future product.
Wieslaw Jasiewicz  (posted 2020-11-14 10:23:38.04)
Hi, I can not find main PCB wiring and parts (U1) specification within LM14S2 documents.Would it be possible to get it as it is necessary for our application? Regards Wieslaw
asundararaj  (posted 2020-11-17 08:24:02.0)
Thank you for contacting Thorlabs. The PCB design and circuitry are considered proprietary and typically, we are not able to share this. I will reach out to you directly regarding your application.
Ashwin Vijayasai  (posted 2020-02-27 04:55:08.153)
Do you have a Butterfly Laser Diode Mount version where external case temperature can be controlled. Newport has one item that can control external case temp. from -5C to 85C. LDM-4984T https://www.newport.com/f/telecom-laser-diode-mounts
asundararaj  (posted 2020-02-27 04:12:04.0)
Thank you for your feedback. At the moment, we do not have a butterfly laser diode mount with external case temperature control. I have added this idea to our internal product forum for discussion to offer this at a future time.
Matthew Majewski  (posted 2019-09-26 22:07:42.733)
Hello, I understand that the bias-T adapter supplied will only work with diodes that have the correct internal circuity, but my question is if it would be possible to use your laser diode bias-T PCB component to externally wire up a modulation input for other diode types?
asundararaj  (posted 2019-10-02 11:05:27.0)
Thank you for your Feedback. To use the Bias-T adapter with other configurations of diodes in a Butterfly package, you can manually configure the LM14S2-UA to suit the pin configurations of your diode.
HYUNJONG CHOI  (posted 2019-08-27 17:56:47.8)
Nice to meet you. I'm try to find the evaluation board of thorlabs CW laser "SFL1550P". In the manual of SFL1550P, LM14S2 will be used for mounting the laser SFL1550P. Is it mean that LM14S2 can be used for the evaluation board of SFL1550P? Please reply. Thank you Your sincerely, Choi
YLohia  (posted 2019-08-27 09:25:51.0)
Hello Choi, thank you for contacting Thorlabs. The LM14S2 is intended to serve as a proper mount for butterfly laser diodes and can be used for nominal testing of the SFL1550P. I have reached out to you directly to gather more details about your application and requirements.
bsvikram  (posted 2017-05-23 01:24:29.873)
Hi, We want to use bias-t to modulate the current of a type -1 diode (SFL 1550S). But the manual says that the bias tee is for type-2 diodes only. How can we modulate type -1 diodes at high frequencies. We also have CLD 1015, but it is also limited in modulation frequency range.
nbayconich  (posted 2017-06-09 09:33:29.0)
Thank you for contacting Thorlabs. The bias-T adapter in the LM14S2 is only compatible with Type 2 Telecom Laser Diodes. Type 2 telecom butterfly diodes are designed specifically to be modulated by a bias-T RF circuit. The type 1 butterfly diode packages do not have the proper circuitry in order to be modulated in a bias-T circuit. Some alternative options to modulate your Type butterfly diodes at higher frequencies is to use an external modulating source such as a LiNbO3 EO modulator which can modulate up to 40 Gb/s . Several of our Laser Diode current drivers can directly modulate the type 1 butterfly diode mounts through the LM14S2. For example the ITC series controllers can directly modulate from DC to 150Khz. A Techsupport representative will contact you directly with more information.
savin.saju  (posted 2017-03-07 21:59:26.173)
dear Sir , LM14S2 is used for 14 pin butterfly package. Currently, there are 10 pin butterfly package laser. Do you have laser mount for 10-pin butterfly package??? please reply
jlow  (posted 2017-03-08 09:01:37.0)
Response from Jeremy at Thorlabs: We do not currently have a 10-pin butterfly mount. I will contact you regarding a custom solution.
schdingo  (posted 2014-11-18 15:00:38.487)
Dear Sir or Madam, what is the maximum heat capacity of the LM14S2? Sincerely
jlow  (posted 2014-12-10 05:07:40.0)
Response from Jeremy at Thorlabs: We do not have a spec on the maximum heat capacity but it is estimated to be around a few W. We will contact you directly to discuss more about suitability of the mount with your application.
emsia  (posted 2013-11-19 10:52:41.403)
Dear Sir/Madam, I am using ILX LDC to control my laser mounted on LM14S2. Everything works perfectly except when the laser is on, the LED does not turn on. The intelock is on bypass mode. The pin 1 os LD is connected to intrlk of the ILX LDC and pin 5 to the ground. any suggestions would be appreciated. Thank you
jlow  (posted 2013-11-19 09:23:30.0)
Response from Jeremy at Thorlabs: The LED indicator needs a certain amount of current (5-10mA) to turn on. We will get in touch with you directly to troubleshoot this.
thomas.chassagne  (posted 2013-07-02 15:29:14.367)
Hi, I would like to use the LM14S2 with the TED200 TEC controller and an external electronic board that command the bias current. In order to disable the Status and the Interlock function, Should I switch the TEC Lock button to "Bypass" ? In the Operating Manual, it's said that a resistor should be used to limit the curent into the PIN1 to between 5. Thus, if I connect the "driver" side of the resistor to 5V, I should use a 500Ohm resistor and connect the PIN5 to the ground ? Thanks, Thomas
tcohen  (posted 2013-07-11 16:20:00.0)
Response from Tim at Thorlabs to Thomas: Thank you for contacting us. Yes, it should be switched to Bypass. You can use that resistance but you may use slightly higher as the current should be limited to a maximum of 10mA.
mlaroton  (posted 2013-03-14 10:48:56.47)
Hi, I would like to use the LM14S2 mount with the FLD5F10NP-A Modulator-integrated DFB laser. In this laser, the case ground is the laser cathode. I wonder if I can still use your mount; do I need a non-standard Adapter Card? or does this feature prevents me to use your mount at all? Thanks, Miguel.
tcohen  (posted 2013-03-14 13:22:00.0)
Response from Tim at Thorlabs: Physically it appears as if your modulation connection opposite to the pins would interfere with our package designed for a 14pin butterfly. Even if this were to fit however, and a custom configuration card LM14S2-UA was to be used, the LM14S2 is suitable only for anode-grounded diodes.
jjurado  (posted 2011-06-15 11:29:00.0)
Response from Javier at Thorlabs to zhemin.cai: Thank you very much for contacting us. We can certainly provide reference drawings that you might be able to use in order to determine whether the LM14S2 will work with your pigtail. Please contact us at techsupport@thorlabs.com, and we will gladly assist you.
zhemin.cai  (posted 2011-06-10 06:55:59.0)
Dear Sir/Madam, I am wondering is that possible to get the mechanical drawing for the LM14S2? Becasue we want to use it to hold a long butterfly package, I want to check if it is fit in or not. Cheers. Zhemin.Cai
tor  (posted 2011-01-04 14:35:52.0)
Response from Tor at Thorlabs to mhafiz.abakar: Thank you for your interest in our LM14S2. This mount is compatible with our LDC8040 and TED8040 via compatible connector cables, http://www.thorlabs.com/NewGroupPage9.cfm?ObjectGroup_ID=895 . We recommend a CAB400 to connect to the LDC and a CAB420-15 to connect to the TED.
mhafiz.abakar  (posted 2010-12-28 21:23:58.0)
Is this laser diode mount suitable to be used with LDC8040 and TED8040 on a pro800 mainframe. thanks.
apalmentieri  (posted 2010-02-10 08:58:39.0)
A response from Adam at Thorlabs to serefocal: The LM14S2 is designed to be used with a temperature controller, like the TED200C. It has the ability of controlling the temperature between 0 and 70 degrees C. The temperature coefficient of the heat sink is 3 degreeC/W. I will email you directly to answer any other questions you may have.
serefocal  (posted 2010-02-10 10:03:30.0)
Dear Sir/Madam:What is the "LM14S2 Butterfly Laser Diode Mounts"s Heat Dissipation Capacity? May I learn? Thanks...
klee  (posted 2009-09-09 10:44:30.0)
A response from Ken at Thorlabs to yuhengc: An applications engineer will contact you directly to discuss about the problem.
yuhengc  (posted 2009-09-09 09:24:44.0)
Dear Sir/Madam: We are using LM14S2. Recently we found the current waveform of DFB LD was not stable. The current drive seems to be OK. Since it is new one and I tested with two simulated diode in series. There was no problem. But when I connected to the LD. The current waveform ( monitored from the current feedback)was not constant. Even worst, after a period of fluctuation, it kept decreasing and finally went down to zero. Sometime, if I switched off the driver and powered up again. The current recovered. The LD is the NEL with a little difference layout of pin to type two laser. I am using type 2 configuration card with pin12 connected as the instruction from the manual. What ,do you think, is the reason?
