PDA8000 光電流測定モジュール
- Single or Dual Channel Modules
- High Precision Measurements
- Up to Seven Measurement Ranges

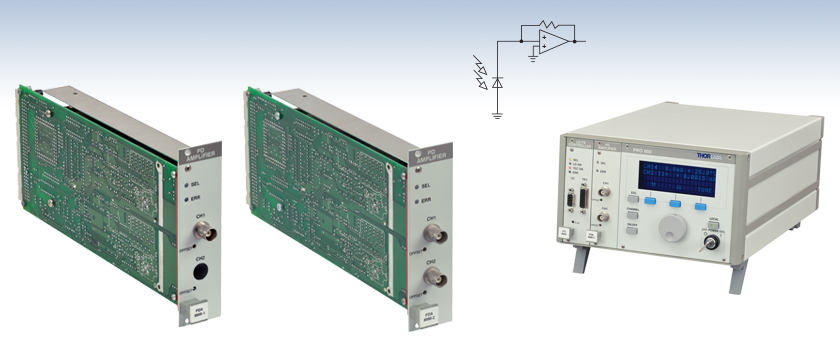

PDA8000-1
(One Channel)
PDA8000-2
(Two Channels)
PRO800 with PDA8000-2
and ITC8022 Modules
Please Wait
PRO8 Series Optionsa | |
---|---|
Laser Diode Current Controllers (Up to 8 A) | |
TEC Temperature Controllers (Up to 64 W) | |
Combination Laser Diode Current (Up to 1 A) & TEC Temperature Controllers (Up to 16 W) | |
DWDM DFB Laser Modulesb | |
Optical Switches | |
Photocurrent Measurement Modules |
特長
- 16ビットの分解能で10 nA~10 mA DCの7つの測定範囲
- 10 nAスケールで0.1 pAの分解能
- フルスケール読み取り精度: ±0.025% (電流範囲では>1 µA)
- 1チャンネルバージョンと2チャンネルバージョンから選択可能
はじめに
PRO8プラットフォーム用 の光電流測定モジュールは、他のPRO8シリーズプラグイン式モジュールとの併用に適しています。このモジュールではDCトランスインピーダンス増幅器を 使って、最も低い増幅設定で20 Hzまでの入力周波数で数pA~10 mAの精密な光電流測定を行ないます。16-ビットのA/Dコンバータ(変換器)を使ってフルスケールの読み取り で±0.025% (範囲>1 µA)の測定分解能を保証しています。これらの機能と低雑音フォトダイオードバイアスの内蔵によって、この機器は理想的なフォトダイオード電流増幅器に なっています。
光パワーの読み取り
PDA8000モジュールでは、校正済みフォトダイオードを使って光パワーを直接読み取ることができます。PRO8プラットフォームの入力画面から「フォトダイオード感度」を入力することができるので、校正済みダイオードの標準校正データを直接入力することが可能です。
コンピュータ制御の IEEE-488.2
PDA8000モジュールの機能は、PRO8シャーシのIEEE- 488 インターフェイスを介してアクセスすることができ、これには校正係数、フォトダイオードバイアス電圧、全ての測定制御パラメータ、測定結果へのアクセスが含まれています。
精密な光測定
フォ トダイオードの可変バイアスによって、光起電モードまたは光伝導性モードのどちらかで動作させることが可能です。バイアスによりダイオードの接合容量は低 減されるので、長年にわたり測定する際にディテクタの線形性は向上します。また、フロントパネルには半導体光センサでのフォトダイオードの暗電流をゼロに するトリムポットもあります。
使いやすい制御性
PRO8の表示メニューによって、 シャーシ内のあらゆるモジュールを簡単に設定できます。簡易表示記号により、あらゆる操作パラメータへ簡単にアクセスできます。全ての設定はメモリに保存されて、モジュールが違うスロットに移動しないかぎりメインフレームの電源を入れると自動的に再設定されます。
Item # | PDA8000-1 | PDA8000-2 |
---|---|---|
Photo Diode Current Measurement Range | 10 nA - 10 mA (Others on Request) | |
Photo Diode Polarity | User Selectable | |
Bias Voltage Setting Range (can be switched off) | 0.1 V to 10 V | |
Photo Diode Coefficient Setting Range | 0.001 - 5.000 A/W | |
Input Resistance | Virtual Ground | |
Temperature Coefficient | ≤50 ppm/°C | |
Bandwidth | DC to 20 Hz (Lowest Amplification) | |
General Data | ||
Module Width | 1 PRO8 Slot | |
Photo Diode Connectors | 1xBNC | 2xBNC |
Channels | Single | Double |
PDA8000 Measurement Range | ||
---|---|---|
Measurement Range | Resolution | Accuracy |
10 mA | 0.1 µA | ±0.025% Full Scale |
1 mA | 10 nA | ±0.025% Full Scale |
100 µA | 1 nA | ±0.025% Full Scale |
10 µA | 0.1 nA | ±0.025% Full Scale |
1 µA | 10 pA | ±0.025% Full Scale |
100 nA | 1 pA | ±0.25% Full Scale |
10 nA | 0.1 pA | ±0.8% Full Scale |
全データは 23 ± 5 °Cで相対湿度45 ± 15%での値です。 |
フォトダイオードコネクタ
BNCメス型
フォトダイオードは両極のBNC入力ジャックに接続できます。
BNCジャックの外側の導体は常に接地されています。
入力電流範囲: 10 nA~10 mA
