ケージアセンブリー&レンズチューブキット

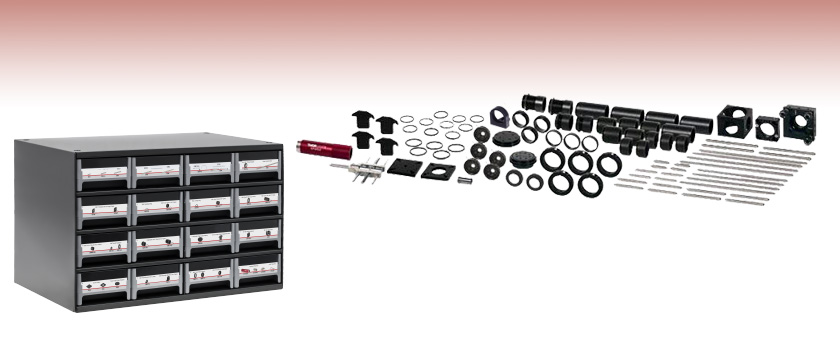

![](https://www.thorlabs.co.jp/Images/GuideImages/1323_ESK07AKit_5.jpg)
- Kit Contains 118 Pieces
- Heavy-Duty Welded Steel Cabinet Frame
- Cabinet Frame can be Wall Mounted or Stacked
- Equipped with Easy-to-Read Labels
ESK07A
![](../../images/loading-red.gif)
Please Wait
![Back Side of ESK Kit](https://www.thorlabs.co.jp/images/TabImages/Lab_Cabinet_A3-100.jpg)
Click to Enlarge
ケースの背面に壁掛け用スロット穴
特長
- ケージシステムとレンズチューブ
- フレーム寸法(W x D x H):435.0 mm x 282.3 mm x 281.3 mm(17.13 x 11.11 x 11.08インチ)
- 引き出し寸法(W x D x H):105.3 mm x 276.9 mm x 57.5 mm(4.14 x 10.90 x 2.27インチ)
- 各引き出しには必要な製品の場所が分かりやすいラベル付き
- 個別に購入するよりもお得な価格
このケージアセンブリ&レンズチューブエッセンシャルキットは、当社のケージアセンブリ部品で最も一般的な製品118個がラベル付きのキャビネットにすべて入った便利なキットです。引き出しには、製品図付きのラベルが貼られているので、必要なパーツをすぐに見つけられます。ケージシステムには、当社のSM1シリーズレンズチューブ&アクセサリが組み込まれています。キットの内容については、「製品構成」タブでご覧いただけます。19インチラックシェルフRK4101を使用すると、ESKシリーズエッセンシャルキットを標準型19インチ機器用ラックRK3884に収納することができます。
ESKシリーズのエッセンシャルキットには、製品のアイコンが付いたラベルが貼られているので、必要な部品をすぐに見つけることができます。右の写真にあるように、全ESKシリーズのキャビネットはケースの背面に壁掛け用にスロット穴がついており、また安定して積み重ねられるよう上部にくぼみ、下部には4本の脚がついています。
Item # in ESK07A (Imperial) | Item # in ESK07A/M (Metric) | Description | Image | Quantity | |
---|---|---|---|---|---|

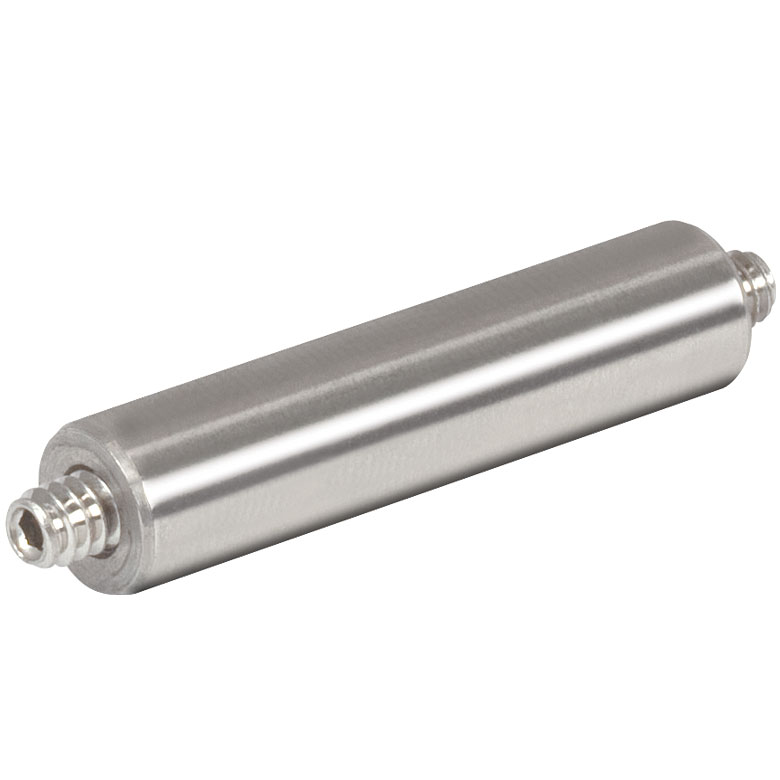

ER1 | Cage Assembly Rod, 1" Long, Ø6 mm | ![]() Click to Enlarge | 4 | ||
ER1.5 | Cage Assembly Rod, 1.5" Long, Ø6 mm | ![]() Click to Enlarge | 4 | ||
ER2 | Cage Assembly Rod, 2" Long, Ø6 mm | ![]() Click to Enlarge | 4 | ||
ER3 | Cage Assembly Rod, 3" Long, Ø6 mm | ![]() Click to Enlarge | 4 | ||
ER4 | Cage Assembly Rod, 4" Long, Ø6 mm | ![]() Click to Enlarge | 4 | ||
ER6 | Cage Assembly Rod, 6" Long, Ø6 mm | ![]() Click to Enlarge | 4 | ||
ER8 | Cage Assembly Rod, 8" Long, Ø6 mm | ![]() Click to Enlarge | 4 | ||
CPA1 | 30 mm Cage System Alignment Plate with Ø0.9 mm Hole | ![]() Click to Enlarge | 4 | ||

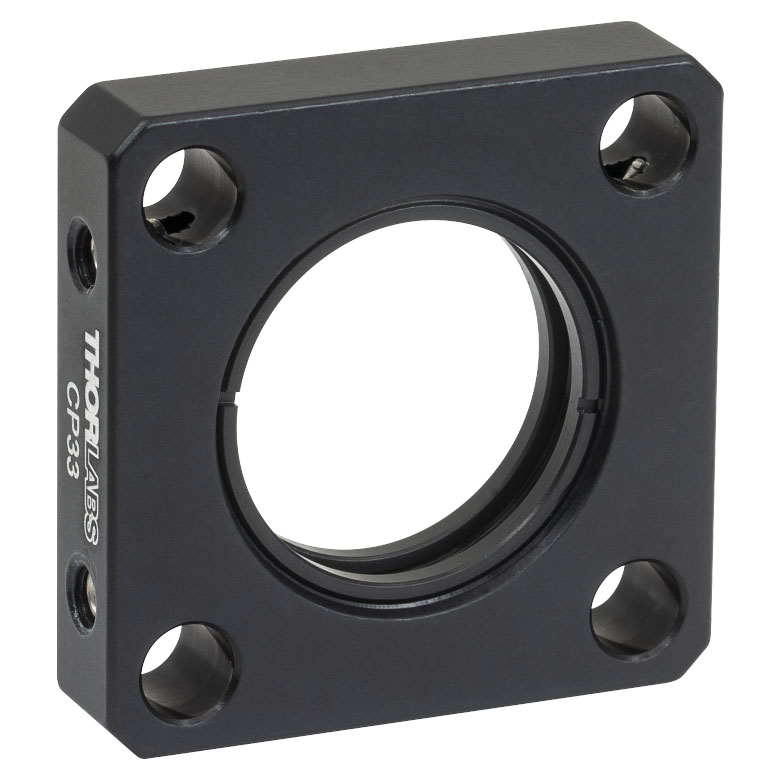

CP33 | CP33/M | 0.35" Thick Cage Plate, 30 mm, SM1 (1.035"-40) Threaded Aperture, 8-32 (M4) Tapped Hole, One SM1RR Retaining Ring Included with Each | ![]() Click to Enlarge | 5 | |
CP33T | CP33T/M | 0.5" Thick Cage Plate, 30 mm, SM1 (1.035"-40) Threaded Aperture, 8-32 (M4) Tapped Hole, Two SM1RR Retaining Rings Included with Each | ![]() Click to Enlarge | 3 | |

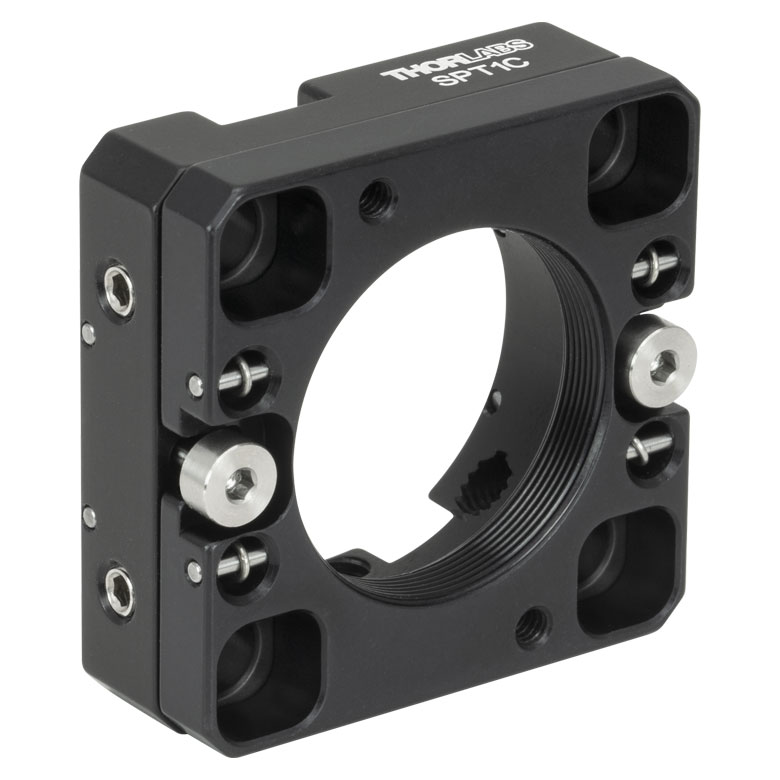

SPT1C | SPT1C/M | XY Slip Plate Positioner, 1 mm Coarse Adjustment | ![]() Click to Enlarge | 1 | |
KC1-T | KC1-T/M | SM1 (1.035"-40) Threaded Kinematic Mount for Ø1" Optics | ![]() Click to Enlarge | 1 | |
B1C | B1C/M | Blank Cover Plate with Rubber O-Ring for C4W/C6WR | ![]() Click to Enlarge | 1 | |

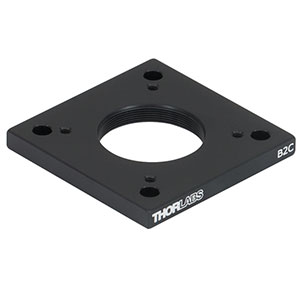

B2C | SM1 (1.035"-40) Threaded Cube Plate for C4W/C6WR | ![]() Click to Enlarge | 1 | ||

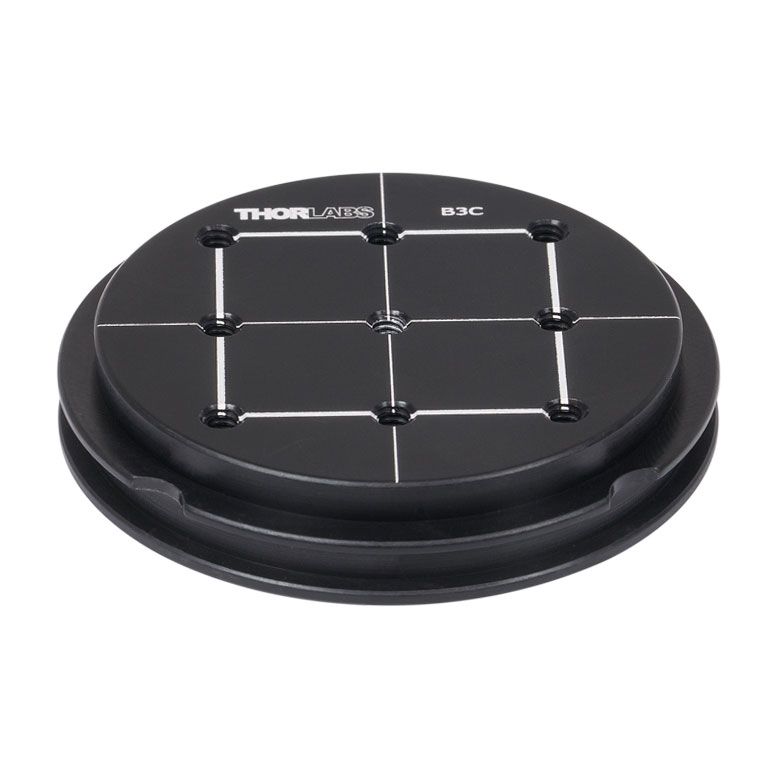

B3C | B3C/M | Rotatable Cage Cube Platform for C4W/C6WR | ![]() Click to Enlarge | 1 | |
B4C | B4C/M | Rotatable Kinematic Cage Cube Platform for C4W/C6WR | ![]() Click to Enlarge | 1 | |
B5CT2 | Ø1" Cage Cube Optic Mount For B3C | ![]() Click to Enlarge | 1 | ||

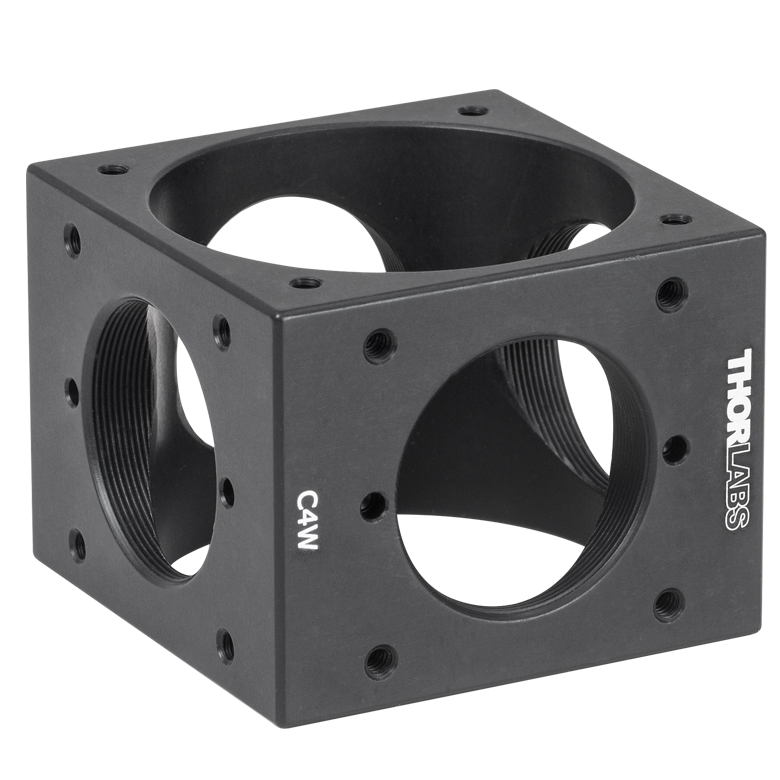

C4W | 30 mm Cage System Cube, 4-Way | ![]() Click to Enlarge | 1 | ||
SM1L05 | SM1 Lens Tube, 0.50" (12.7 mm) Bore Depth, One SM1RR Retaining Ring Included with Each | ![]() Click to Enlarge | 5 | ||
SM1L10 | SM1 Lens Tube, 1.00" (25.4 mm) Bore Depth, One SM1RR Retaining Ring Included with Each | ![]() Click to Enlarge | 5 | ||
SM1L20 | SM1 Lens Tube, 2.00" (50.8 mm) Bore Depth, One SM1RR Retaining Ring Included with Each | ![]() Click to Enlarge | 5 | ||
SM05L05 | SM05 Lens Tube, 1/2" (12.7 mm) Bore Depth, One SM05RR Retaining Ring Included with Each | ![]() Click to Enlarge | 3 | ||
SM1T1 | SM1 (1.035"-40) Coupler, Internal Threads | ![]() Click to Enlarge | 3 | ||
SM1T2 | SM1 (1.035"-40) Coupler, External Threads, Two SM1NT Locking Nuts Included with Each | ![]() Click to Enlarge | 3 | ||

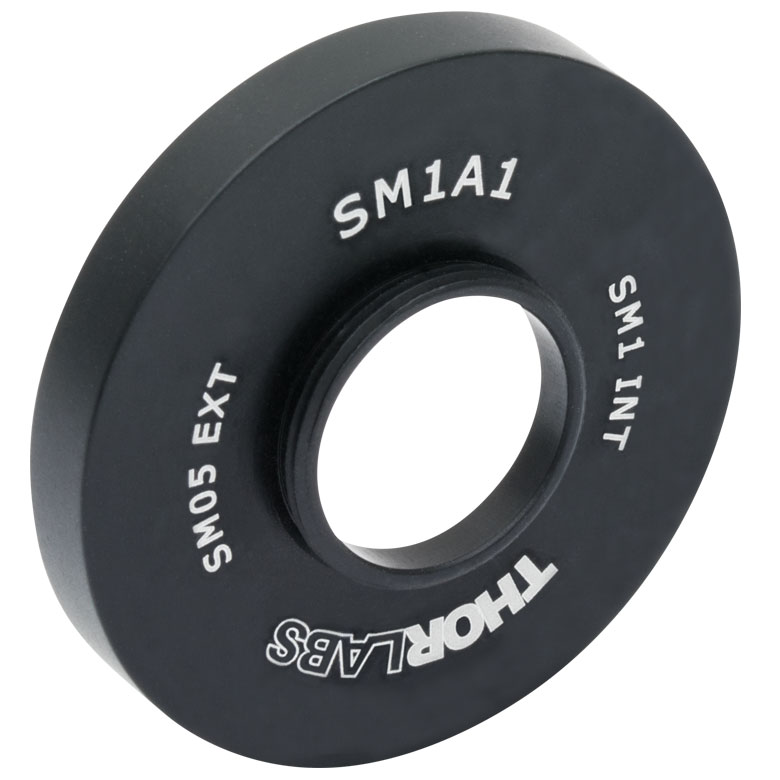

SM1A1 | Thread Adapter, SM05 External / SM1 Internal Threaded Ends | ![]() Click to Enlarge | 5 | ||
SM1A2 | Thread Adapter, SM1 External / SM2 Internal Threaded Ends | ![]() Click to Enlarge | 5 | ||
SM1A3 | Thread Adapter, SM1 External / RMS Internal Threaded Ends | ![]() Click to Enlarge | 2 | ||
SM1A4 | Thread Adapter, RMS External / SM1 Internal Threaded Ends | ![]() Click to Enlarge | 2 | ||

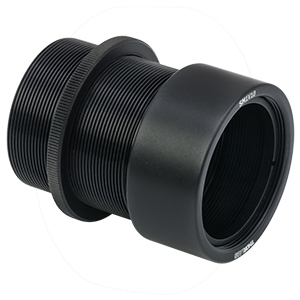

SM1V05 | Ø1" Rotating Adjustable Focusing Element, 1/2" Travel | ![]() Click to Enlarge | 2 | ||
SM1V10 | Ø1" Rotating Adjustable Focusing Element, 1" Travel | ![]() Click to Enlarge | 2 | ||

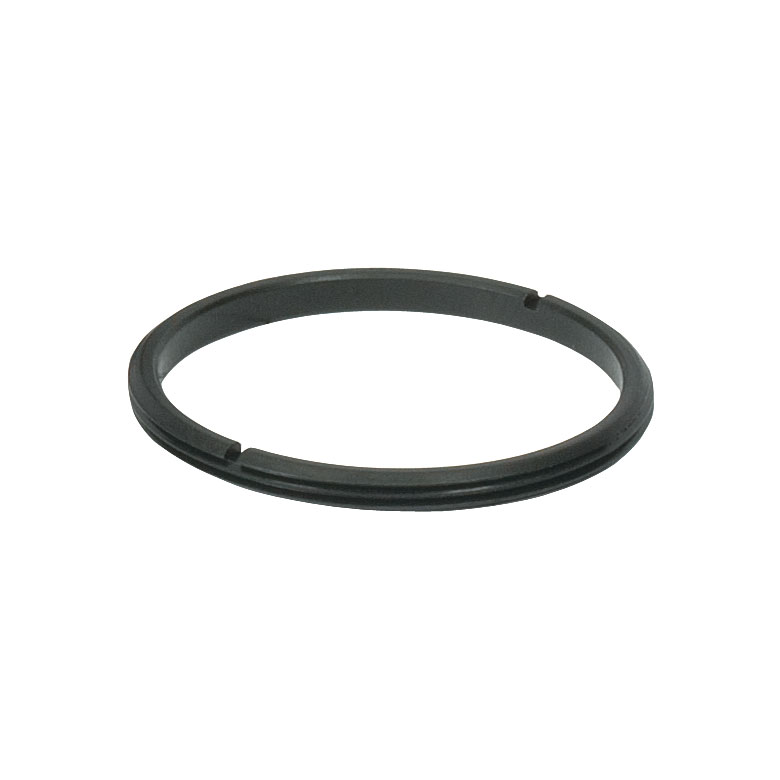

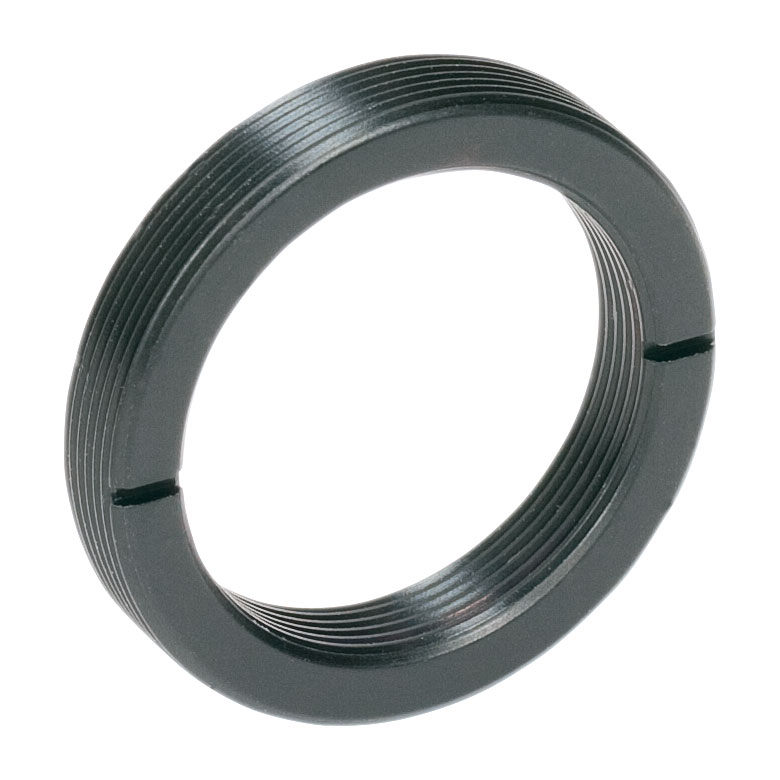

SM1RR | Retaining Ring, SM1 (1.035"-40) Threaded x 0.08" (2 mm) Thick | ![]() Click to Enlarge | 10 | ||

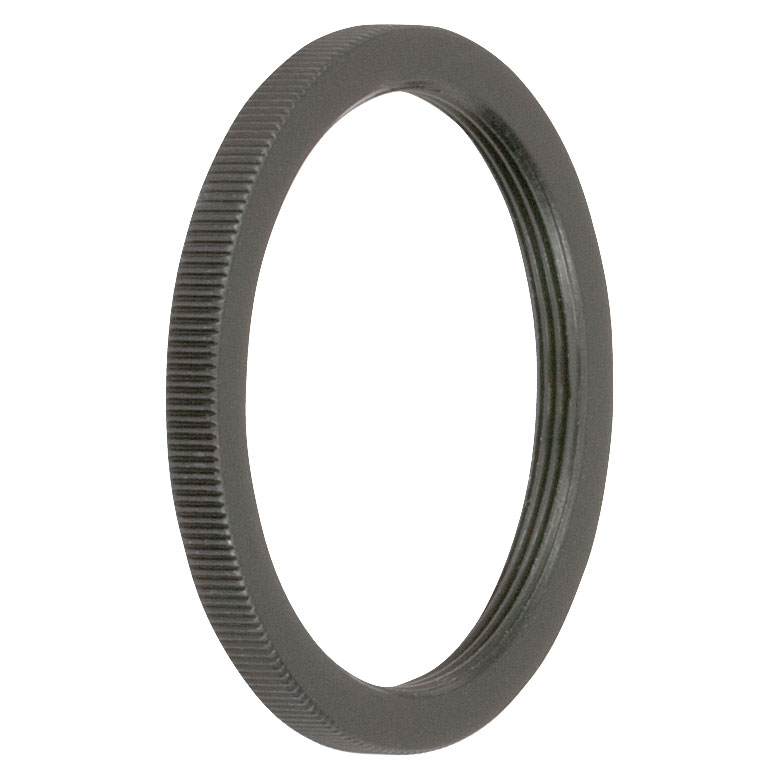

SM1NT | SM1 Locking Nut (1.035"-40) | ![]() Click to Enlarge | 5 | ||

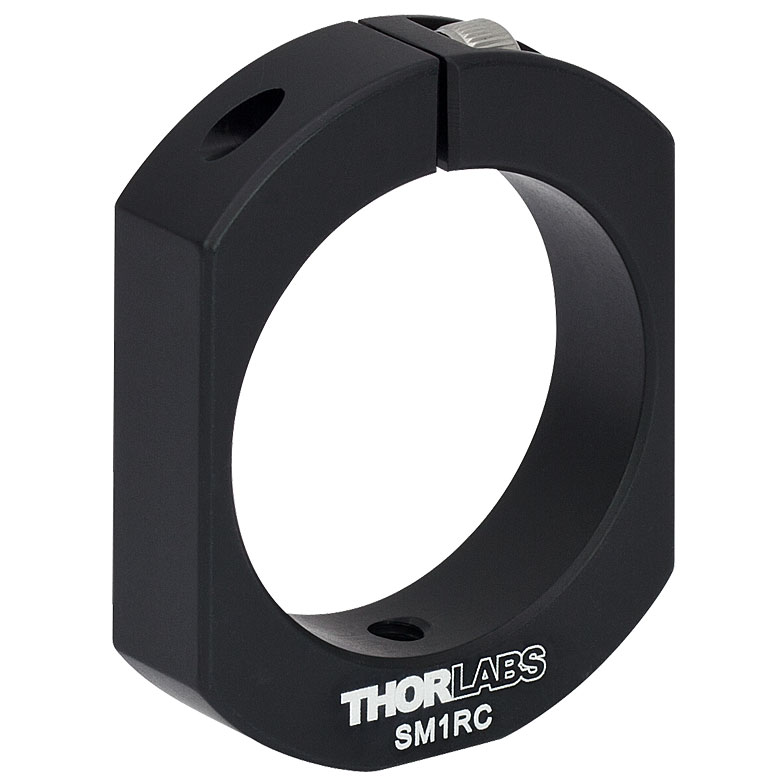

SM1RC | SM1RC/M | SM1 Series Slip Ring | ![]() Click to Enlarge | 5 | |
SM1D12 | Iris Diaphragm Used In SM1 (1.035"-40) Series | ![]() Click to Enlarge | 5 | ||

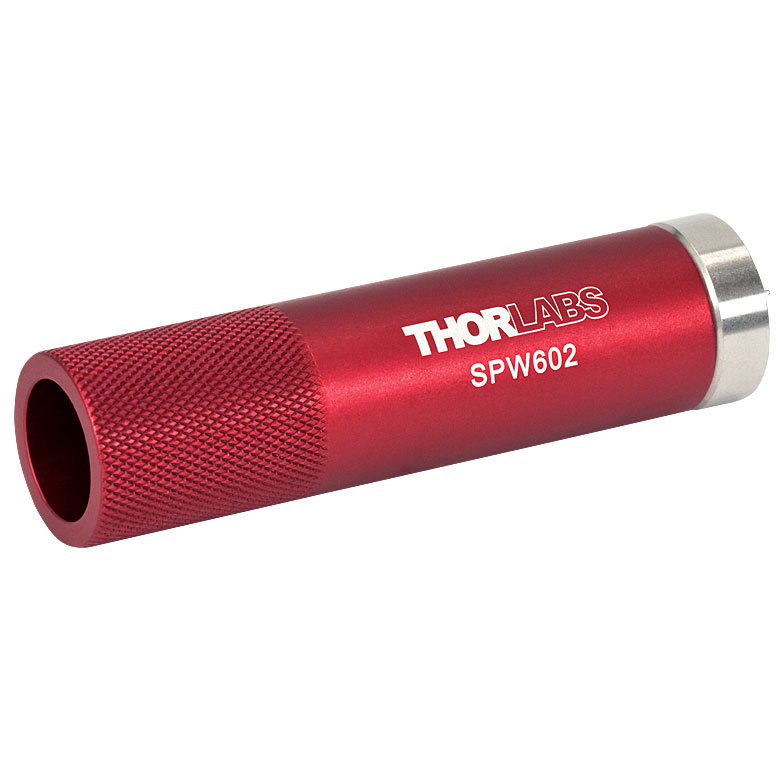

SPW602 | SM1RR Spanner Wrench with Clear Aperture | ![]() Click to Enlarge | 1 | ||
SPW603 | SM05RR Spanner Wrench with Clear Aperture | ![]() Click to Enlarge | 1 | ||
SPW801 | Adjustable Spanner Wrench Set | ![]() Click to Enlarge | 1 | ||

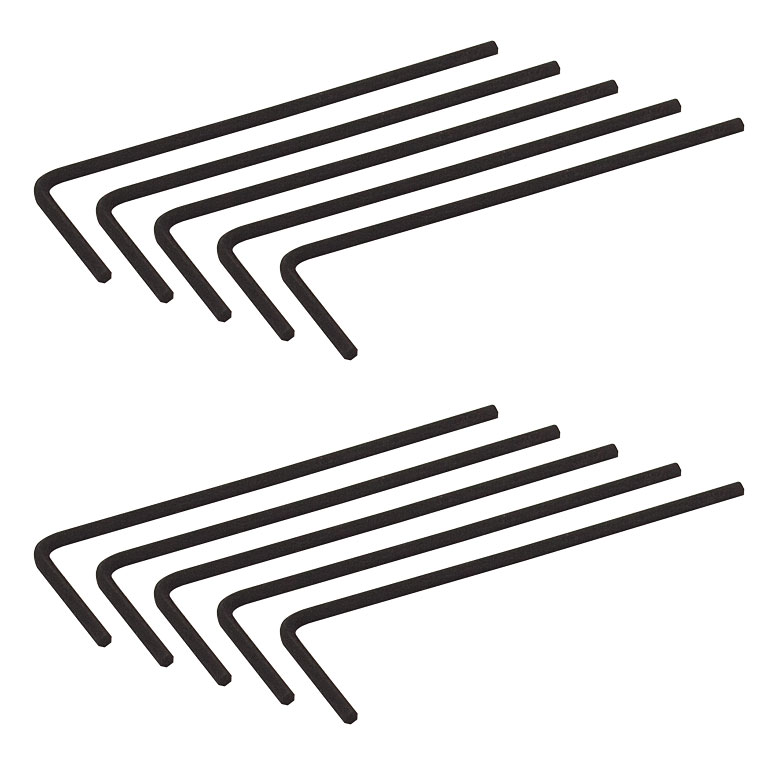

HK050 | 0.050" (1.3 mm) Hex Keys, 10 Pack | ![]() Click to Enlarge | 2 |
