5軸キネマティックマウント

Five Axes (Pitch, Yaw, and XYZ) of Adjustment
Mounts for Ø1/2", Ø1", or Ø2" Optics or SM-Threaded Components

K5X1

Ø1" Optic Mount

K5X1 Kinematic Mount Shown
with a Ø1" Lens Tube
and Ø1/2" Post

K5X05

Ø1/2" Optic Mount

K5X2

Ø2" Optic Mount

Please Wait

概要
Feedback

Click to Enlarge
キネマティックマウントK5X2の背面

Click to Enlarge
キネマティックマウントK5X1の背面

Click to Enlarge

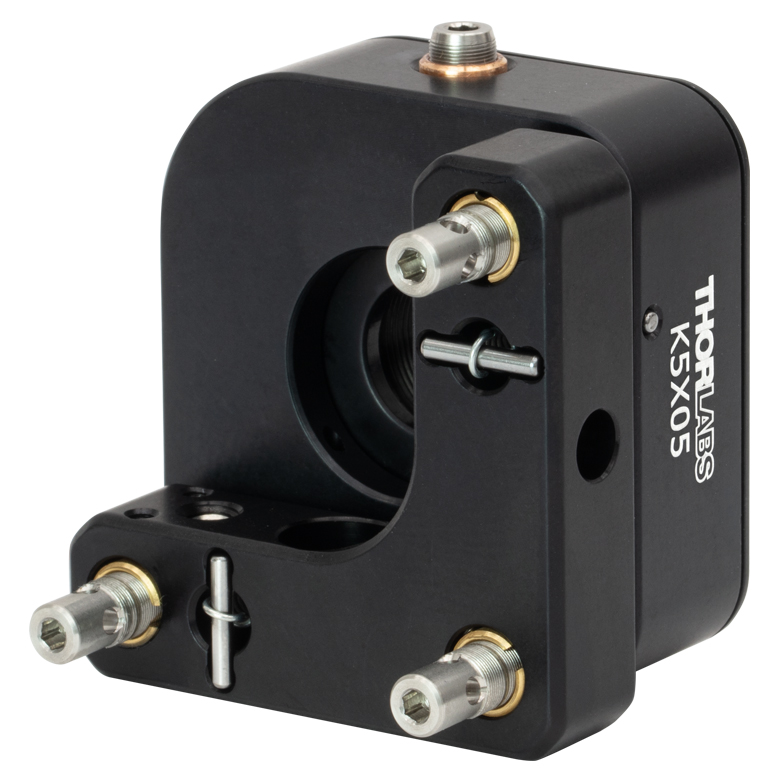

キネマティックマウントK5X05の背面

特長

SM05ネジ付きØ12 mm～Ø12.7 mm(Ø1/2インチ)、SM1ネジ付きØ25 mm～Ø25.4 mm(Ø1インチ)、SM2ネジ付きØ50 mm～Ø50.8 mm(Ø2インチ)光学素子用マウント
5軸調整、ロック可能な軸の数
- Ø12 mm～Ø12.7 mm(Ø1/2インチ)光学素子用マウント：ロック可能な軸が3つ
- Ø25 mm～Ø25.4 mm(Ø1インチ)とØ50 mm～Ø50.8 mm(Ø2インチ)光学素子用マウント：ロック可能な軸が5つ
ポストへの取り付け
- Ø12 mm～Ø12.7 mm(Ø1/2インチ)とØ25 mm～Ø25.4 mm(Ø1インチ)光学素子用マウント：90°の位置にM4ザグリ穴が2つ
- Ø50 mm～Ø50.8 mm(Ø2インチ)光学素子用マウント：90°の位置にM4ザグリ穴が3つずつ(合計6個)
コンパクトサイズ
- Ø12 mm～Ø12.7 mm(Ø1/2インチ)光学素子用マウント：44.8 mm x 44.8 mm x 36.7 mm
- Ø25 mm～Ø25.4 mm(Ø1インチ)光学素子用マウント：64.4 mm x 64.4 mm x 53.3 mm
- Ø50 mm～Ø50.8 mm(Ø2インチ)光学素子用マウント：89.3 mm x 89.3 mm x 52.2 mm

5軸キネマティックマウントK5X05、K5X1、K5X2 は、5軸(ピッチ、ヨー、XYZ方向)に調整可能な光学素子マウントです。マウントK5X05のピッチ、ヨーおよびZ軸移動用の3つのアジャスターネジにはロックネジが含まれますが、X軸とY軸はロックすることができません。マウントK5X1とK5X2の5つのアジャスターネジすべてにはロックネジが付いています。

このキネマティックマウントの光学セルには、光学素子取付け用のSM05、SM1、SM2内ネジのいずれかが付いています。各5軸マウントには、マウント無しの光学素子を固定するための固定リング SM05RR、SM1RR、SM2RRがいずれか1つ付属します。各マウントに適した光学素子のサイズについては下表をご覧ください。

固定リングSM05RRはスパナレンチSPW603またはSPW603L、固定リングSM1RRはスパナレンチSPW602またはSPW606、SM2RRはスパナレンチSPW604で締め付けることができます(スパナレンチは別売りです)。また調整機能付きスパナレンチSPW801(別売り)を用いると、5軸マウントに使用されているどの固定リングも精密に合わせることができます。マウントには垂直ならびに水平方向に目盛が刻印されており、セルに取り付ける際のアライメントに使用できます。キネマティックマウントK5X05、K5X1、K5X2は、右回りまたは左回りの構成でポストに取り付け可能です。マウントK5X05とK5X1には直交する2つのM4用ザグリ穴があり、マウントK5X2には直交する各取付面に3つ、合計6つのM4用ザグリ穴があります。

これらのキネマティックマウントの5つの軸は、2 mm六角(ボール)レンチまたはボールドライバ(付属しません)を使用して調整できます。マウントK5X05には、ノブの付いていない3/16"-100アジャスターネジが5つ付いています。ピッチ、ヨーおよびZ軸調整用の3つのネジは2 mm六角レンチを使用してロックできます。また、Ø1.8 mmのサイドホールも付いており、スペースが限られているセットアップに対応できるようになっています。キネマティックマウントK5X1とK5X2には、ピッチ、ヨーおよびZ軸調整用の取外し可能なノブが付いた1/4"-80アジャスターネジが3つあり、2 mm六角レンチでロックできます。K5X1とK5X2のXY軸は、3/16"-100アジャスターネジが2つ付いており、付属の0.035インチ六角レンチでロックが可能です(マウントK5X1のXY軸調整には、取外し可能なノブがついています)。マウントK5X1またはK5X2でさらに高い調整分解能が必要の場合には、3つの1/4"-80アジャスタネジを差動アジャスターネジDAS110またはDM22に交換することができます。

K5X05、K5X1、K5X2の軸調整に加え、回転調整もご入用の場合には6軸キネマティックマウントK6X05,、K6XSとK6X2をご用意しております。

Item #	Optic Cell Threading	Optic Size	Max Optic Thickness	Pitch/Yaw Adjust (Resolution)	X/Y Adjust (Resolution)	Z Adjust^a(Resolution)	Clear Aperture	Included Retaining Ring	Mounting Counterbores
K5X05	SM05 (0.535"-40)	Ø1/2"	0.33" (8.4 mm)	±4° (8 mrad/rev)	±1.0 mm (254 µm/rev)	±4.6 mm (254 µm/rev)	0.44" (11.0 mm)	SM05RR^b	Two #8 (M4)s
K5X1	SM1 (1.035"-40)	Ø1"	0.38" (9.5 mm)	±4° (8 mrad/rev)	±1.0 mm (254 µm/rev)	±3.2 mm (318 µm/rev)	0.90" (22.9 mm)	SM1RR^c	Two #8 (M4)s
K5X2	SM2 (2.035"-40)	Ø2"	0.42" (10.7 mm)	±3° (4.6 mrad/rev)	±2.0 mm (254 µm/rev)	±3.8 mm (318 µm/rev)	1.90" (48.3 mm)	SM2RR^d	Six #8 (M4)s

Z軸方向に移動させるときは、あおり調整(チップ/チルト)用の3つのアジャスターネジを、すべて同じ方向に均等に回します。
推奨スパナレンチ(別売り):SPW603またはSPW603L
推奨スパナレンチ(別売り):SPW602またはSPW606
推奨スパナレンチ(別売り):SPW604

Posted Comments:

Sung-Dong Han (posted 2024-08-27 14:51:19.083)

Please tell me the load capacity of this product (K5X1)

jdelia (posted 2024-08-29 11:59:27.0)

Thank you for contacting Thorlabs. While we have not characterized a load capacity for our 5-axis mounts, I have contacted you directly via email to discuss your application and whether the load you would like to mount would be suitable for these devices.

Kai Kühnlenz (posted 2024-08-20 12:04:05.37)

Hello, in the drawing of the K5X05-Mount you can see the nominal values. Do they describe the case, where the K5X05 is shown in the middle of it's adjustment range? (So it's z-range is 4.6mm, does the drawing show the mount, when it's in the middel of that, at 2.3mm, so i can move it 2,3mm in either direction?)

jdelia (posted 2024-08-21 03:53:36.0)

Thank you for contacting Thorlabs. Yes, you are correct. The CAD drawing shows the mount at its nominal position, meaning at the middle of its travel range.

Jakob Reichel (posted 2020-10-02 12:34:23.52)

Is it possible to screw in a lens tube from the back side (even when x/y adjustment is off-center)?

YLohia (posted 2020-10-02 09:48:59.0)

Thank you for contacting Thorlabs. Unfortunately, it is not possible to screw in a lens tube from the back of the K5X1.

Andrey Revyakin (posted 2020-08-16 13:22:44.663)

a beefier (or 2") option that supports heavy 10x beam expanders would be great to have.

YLohia (posted 2020-08-19 09:32:03.0)

Hello, thank you for your feedback. I have posted your suggestion on our internal product engineering forum for further consideration as a future product in our catalog.

user (posted 2019-10-19 19:59:14.623)

Are you planing to design a 2" version of K5X1 compatible with a 60mm cage system? Thank you.

YLohia (posted 2019-10-21 10:27:03.0)

Hello, thank you for contacting Thorlabs. We currently do not have any plans of offering a 2", 600 mm cage-compatible version of the K5X1. That being said, I have posted your request on our internal product engineering forum for further consideration as a future catalog item.

user (posted 2019-10-14 10:18:04.06)

Would it possible to replace the two 100-tpi X,Y-translation screws with a compact motorized actuators, e.g., PIAK10?

YLohia (posted 2019-10-14 04:57:12.0)

Hello, thank you for contacting Thorlabs. Unfortunately, this is not possible as these XY adjusters feature a 3/16" mounting barrel while the PIAK10 has a 1/4"-80 Thread and 3/8" Barrel. We do not have any compatible motorized actuators for the 3/16"-100 thread.

user (posted 2019-06-05 16:38:44.487)

This is good - can you please offer version with all metric parts?!

YLohia (posted 2019-06-13 09:19:46.0)

Hello, thank you for contacting Thorlabs. This part is counterbored mounting hole, so it is compatible with 8-32 threads as well as M4 threads. If there is a specific requirement you have regarding this, please reach out to us via email.

user (posted 2018-11-09 17:45:48.663)

A greater X and Y translation would be great on this product. Thank you!

mmcclure (posted 2018-11-12 08:28:54.0)

Thank you for your feedback! I have logged your suggestion in our internal forum for further consideration by our engineers.

hfarah (posted 2018-07-24 08:44:45.353)

Is the K5X1 mount compatible with the M4 or 8-32 screws? or both?

YLohia (posted 2018-07-24 08:17:50.0)

Hello, the K5X1 mount is compatible with both since it is a counterbored hole.

glenn.cellbio (posted 2018-02-23 17:29:49.81)

Hi My name is Glenn. Can 5 Axis kinematic mount use as C-mount on microscope ? I have a Zeiss 2 port phototube but with slightly different tilting angle of each port , I'm currently use fixed 1X C-mount , can I use this product to adjust? Thank you so much!

llamb (posted 2018-03-30 03:15:00.0)

Hello Glenn, thank you for contacting Thorlabs. The K5X1 has an SM1-threaded bore, to which you can connect a thread adapter (like our SM1A10) in order to adapt to C-mount threads. I will reach out to you directly to discuss your application further and see if this product is suitable.

a.webber-date (posted 2018-02-19 15:30:49.08)

Hello, We would really like to have something like this, only cage mountable. Might be worth putting on your internal forum if it isn't there already

llamb (posted 2018-03-04 04:57:53.0)

Thank you for contacting Thorlabs and for your feedback. I will add this idea to our internal product forum so that hopefully we can offer a cage mountable 5-axis kinematic mount in the future. I will also reach out to you directly to discuss this further.

yanliu (posted 2017-04-14 17:10:47.077)

Could you make a 2" version of K5X1? Thanks!

tfrisch (posted 2017-04-27 04:54:39.0)

Hello, thank you for contacting Thorlabs. I have posted your feedback in our internal engineering forum. I will also reach out to you directly to discuss your application.

user (posted 2016-05-19 09:55:15.577)

Dear Thorlabs team, is it be possible to purchase a two inch version of the K5X1 mount? Thanks.

besembeson (posted 2016-05-19 09:45:59.0)

Response from Bweh at Thorlabs USA: We don't have this at the moment and offering as a special will require modifying several components to accommodate 2". Please contact me at techsupport@thorlabs.com so I can discuss further your requirements.

ali.mahdavi (posted 2015-07-28 10:36:09.6)

regarding product K5X1 I just need half of this! rotation plus x-y mount any solution?

besembeson (posted 2015-09-23 06:38:21.0)

Response from Bweh at Thorlabs USA: We don't have a single solution at the moment. One way to achieve this now is to couple an XY mount such as the LM1XY to a rotation mount such as the CRM1 (or similar) using a coupler like the SM1T2 (or similar).
