M32 x 0.75ネジ付き変換アダプター
![](https://www.thorlabs.co.jp/Images/GuideImages/10423_M32Adapters_1.jpg)
- Integrate M32 x 0.75 Threaded Components with Other Industry-Standard Threads
- Adapters Available with Either Internal or External
M32 x 0.75 Threads
M32RMSS
Brass Microscope Adapter, External M32 x 0.75 Threads and Internal RMS Threads
SM1A34
External SM1 Threads and Internal M32 x 0.75 Threads
CSN100
M32M25S
N40X-PF
M32M25S Adapter Connecting a Nikon Objective to a Cerna® Nosepiece
![](../../images/loading-red.gif)
Please Wait
M32 x 0.75ネジ付き変換アダプタ
こちらのページでは当社のM32 x 0.75ネジ付きのネジ変換アダプタの全製品をご紹介しています。アダプタは、内ネジと外ネジの両方が付いているタイプをご用意しています。
下記の真鍮製の顕微鏡アダプタは、当社の Bergamo® ならびにCerna®イメージングシステムでのご使用に適しています。こちらのアダプタには縁が付いているので、顕微鏡対物レンズをマウントに深くねじ込み過ぎるのを防ぎます。また、真鍮はアルミニウムよりも固いため、対物レンズのネジに対する応力もかかりにくくなります。
M32 x 0.75ネジ変換アダプタは、当社の光学部品用ネジ付きアダプタのラインナップの一部です。全ラインナップは、ネジ変換アダプタのセレクションガイドをご参照ください。
Adapters with Internal M32 x 0.75 and External Industry-Standard Threads | ||||
---|---|---|---|---|
Item # | Typical Application | External Threads | Internal Threads | |
RMSA10 | ![]() | Attach M32 x 0.75 Objective to RMS Mount | RMS (0.800"-36) | M32 x 0.75 |
M32A2 | ![]() | Integrate M32 x 0.75 Objective with M25 x 0.75 Mount | M25 x 0.75 | M32 x 0.75 |
SM1A34 | ![]() | Attach M32 x 0.75 Objective to SM1 Lens Tube | SM1 (1.035"-40) | M32 x 0.75 |
SM2A22 | ![]() | Integrate M32 x 0.75 Objective into SM2 Lens Tube | SM2 (2.035"-40) | M32 x 0.75 |
M2M32Sa | ![]() | Integrate M32 x 0.75 Objective with SM2 Mount | SM2 (2.035"-40) | M32 x 0.75 |
Adapters with External M32 x 0.75 and Internal Industry-Standard Threads | |||||
---|---|---|---|---|---|
Item # | Typical Application | External Threads | Internal Threads | ||
RMSA9 | ![]() | Integrate RMS Objective with M32 x 0.75 Mount | M32 x 0.75 | RMS (0.800"-36) | |
M32RMSSa | ![]() | Integrate RMS Objective with M32 x 0.75 Mount | M32 x 0.75 | RMS (0.800"-36) | |

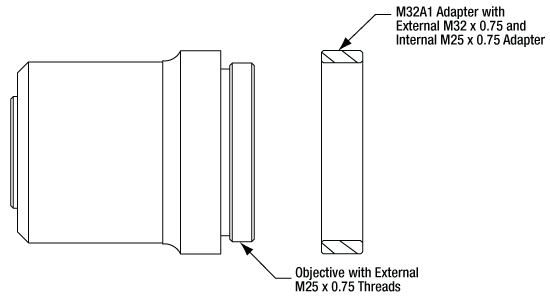

M32A1 | ![]() | Integrate M25 x 0.75 Objective with M32 x 0.75 Mount | M32 x 0.75 | M25 x 0.75 | |
M32M25Sa | ![]() | Integrate M25 x 0.75 Objective with M32 x 0.75 Mount | M32 x 0.75 | M25 x 0.75 | |
SM1A33 | ![]() | Integrate SM1 Lens Tube with M32 x 0.75 Mount | M32 x 0.75 | SM1 (1.035"-40) | |
M32SM1Sa | ![]() | Integrate SM1 Lens Tube with M32 x 0.75 Mount | M32 x 0.75 | SM1 (1.035"-40) | |
M32W26Sa | Integrate W26 x 0.706 Objective with M32 x 0.75 Mount | M32 x 0.75 | W26 x 0.706b | ||
M32M27Sa | ![]() | Integrate M27 x 0.75 Objective with M32 x 0.75 Mount | M32 x 0.75 | M27 x 0.75 | |
M32M271Sa | ![]() | Integrate M27 x 1.0 Objective with M32 x 0.75 Mount | M32 x 0.75 | M27 x 1.0 | |
M32M34Sa | ![]() | Integrate M34 x 1.0 Objective with M32 x 0.75 Mount | M32 x 0.75 | M34 x 1.0 | |
M32M40Sa | ![]() | Integrate M40 x 0.706 Objective with M32 x 0.75 Mount | M32 x 0.75 | M40 x 0.706 | |
SM2A23 | ![]() | Integrate SM2 Lens Tube into M32 x 0.75 Mount | M32 x 0.75 | SM2 (2.035"-40) |
SM05 Threading: Ø1/2" Lens Tubes, 16 mm Cage Systems | |||
---|---|---|---|
External Thread, 0.535"-40.0 UNS-2A | Internal Thread, 0.535"-40.0 UNS-2B | ||
Max Major Diameter | 0.5340" | Min Major Diameter | 0.5350" |
Min Major Diameter | 0.5289" | Min Pitch Diameter | 0.5188" |
Max Pitch Diameter | 0.5178" | Max Pitch Diameter | 0.5230" |
Min Pitch Diameter | 0.5146" | Min Minor Diameter (and 83.3% of Thread) | 0.508" |
Max Minor Diameter | 0.5069" | Max Minor Diameter (and 64.9% of Thread) | 0.514" |
RMS Threading: Objective, Scan, and Tube Lenses | |||
---|---|---|---|
External Thread, 0.800"-36.0 UNS-2A | Internal Thread, 0.800"-36.0 UNS-2B | ||
Max Major Diameter | 0.7989" | Min Major Diameter | 0.8000" |
Min Major Diameter | 0.7934" | Min Pitch Diameter | 0.7820" |
Max Pitch Diameter | 0.7809" | Max Pitch Diameter | 0.7866" |
Min Pitch Diameter | 0.7774" | Min Minor Diameter (and 83.3% of Thread) | 0.770" |
Max Minor Diameter | 0.7688" | Max Minor Diameter (and 64.9% of Thread) | 0.777" |
C-Mount Threading: Machine Vision Lenses, CCD/CMOS Cameras | |||
---|---|---|---|
External Thread, 1.000"-32.0 UN-2A | Internal Thread, 1.000"-32.0 UN-2B | ||
Max Major Diameter | 0.9989" | Min Major Diameter | 1.0000" |
Min Major Diameter | 0.9929" | Min Pitch Diameter | 0.9797" |
Max Pitch Diameter | 0.9786" | Max Pitch Diameter | 0.9846" |
Min Pitch Diameter | 0.9748" | Min Minor Diameter (and 83.3% of Thread) | 0.966" |
Max Minor Diameter | 0.9651" | Max Minor Diameter (and 64.9% of Thread) | 0.974" |
SM1 Threading: Ø1" Lens Tubes, 30 mm Cage Systems | |||
---|---|---|---|
External Thread, 1.035"-40.0 UNS-2A | Internal Thread, 1.035"-40.0 UNS-2B | ||
Max Major Diameter | 1.0339" | Min Major Diameter | 1.0350" |
Min Major Diameter | 1.0288" | Min Pitch Diameter | 1.0188" |
Max Pitch Diameter | 1.0177" | Max Pitch Diameter | 1.0234" |
Min Pitch Diameter | 1.0142" | Min Minor Diameter (and 83.3% of Thread) | 1.008" |
Max Minor Diameter | 1.0068" | Max Minor Diameter (and 64.9% of Thread) | 1.014" |
SM30 Threading: Ø30 mm Lens Tubes | |||
---|---|---|---|
External Thread, M30.5 x 0.5 – 6H/6g | Internal Thread, M30.5 x 0.5 – 6H/6g | ||
Max Major Diameter | 30.480 mm | Min Major Diameter | 30.500 mm |
Min Major Diameter | 30.371 mm | Min Pitch Diameter | 30.175 mm |
Max Pitch Diameter | 30.155 mm | Max Pitch Diameter | 30.302 mm |
Min Pitch Diameter | 30.059 mm | Min Minor Diameter (and 83.3% of Thread) | 29.959 mm |
Max Minor Diameter | 29.938 mm | Max Minor Diameter (and 64.9% of Thread) | 30.094 mm |
SM1.5 Threading: Ø1.5" Lens Tubes | |||
---|---|---|---|
External Thread, 1.535"-40 UNS-2A | Internal Thread, 1.535"-40 UNS-2B | ||
Max Major Diameter | 1.5339" | Min Major Diameter | 1.535" |
Min Major Diameter | 1.5288" | Min Pitch Diameter | 1.5188" |
Max Pitch Diameter | 1.5177" | Max Pitch Diameter | 1.5236" |
Min Pitch Diameter | 1.5140" | Min Minor Diameter (and 83.3% of Thread) | 1.508" |
Max Minor Diameter | 1.5068" | Max Minor Diameter (and 64.9% of Thread) | 1.514" |
SM2 Threading: Ø2" Lens Tubes, 60 mm Cage Systems | |||
---|---|---|---|
External Thread, 2.035"-40.0 UNS-2A | Internal Thread, 2.035"-40.0 UNS-2B | ||
Max Major Diameter | 2.0338" | Min Major Diameter | 2.0350" |
Min Major Diameter | 2.0287" | Min Pitch Diameter | 2.0188" |
Max Pitch Diameter | 2.0176" | Max Pitch Diameter | 2.0239" |
Min Pitch Diameter | 2.0137" | Min Minor Diameter (and 83.3% of Thread) | 2.008" |
Max Minor Diameter | 2.0067" | Max Minor Diameter (and 64.9% of Thread) | 2.014" |
SM3 Threading: Ø3" Lens Tubes | |||
---|---|---|---|
External Thread, 3.035"-40.0 UNS-2A | Internal Thread, 3.035"-40.0 UNS-2B | ||
Max Major Diameter | 3.0337" | Min Major Diameter | 3.0350" |
Min Major Diameter | 3.0286" | Min Pitch Diameter | 3.0188" |
Max Pitch Diameter | 3.0175" | Max Pitch Diameter | 3.0242" |
Min Pitch Diameter | 3.0133" | Min Minor Diameter (and 83.3% of Thread) | 3.008" |
Max Minor Diameter | 3.0066" | Max Minor Diameter (and 64.9% of Thread) | 3.014" |
SM4 Threading: Ø4" Lens Tubes | |||
---|---|---|---|
External Thread, 4.035"-40 UNS-2A | Internal Thread, 4.035"-40.0 UNS-2B | ||
Max Major Diameter | 4.0337" | Min Major Diameter | 4.0350" |
Min Major Diameter | 4.0286" | Min Pitch Diameter | 4.0188" |
Max Pitch Diameter | 4.0175" | Max Pitch Diameter | 4.0245" |
Min Pitch Diameter | 4.0131" | Min Minor Diameter (and 83.3% of Thread) | 4.008" |
Max Minor Diameter | 4.0066" | Max Minor Diameter (and 64.9% of Thread) | 4.014" |
