ファイバー出力型レーザー光源:可視域用
- SM, MM, and PM Sources Available
- Full Output Powers from 2.5 to 50.0 mW
- Stable, Low Noise, Constant Power Operation
S1FC660
660 nm, 15.0 mW
Front Panel Display Provides an Enable Button, Laser Power Control, and Display Screen
Please Wait
Single Channel Benchtop Laser Sources Selection Guide | |||||
---|---|---|---|---|---|
Spectrum | Wavelength | TEC | Laser Type | Cavity Type | Output Fiber Type |
Visible | 405 - 675 nm | No | Semiconductor | Fabry Perot | SM, MM, or PM |
405 - 685 nm | Yes | Semiconductor | Fabry Perot | SM | |
NIR | 785 - 1550 nm | No | Semiconductor | Fabry Perot | SM or PM |
705 - 2000 nm | Yes | Semiconductor | Fabry Perot | SM | |
1310 - 1550 nm | Yes | Semiconductor | DFB | SM | |
1900 - 2000 nm | N/A | Fiber Laser | Fabry Perot | SM | |
MIR | 2.7 µm | N/A | Fiber Laser | Fabry Perot | SM |
Other Fiber-Coupled Laser Sources |
特長
- 波長:
- シングルモード(SM):405 nm~675 nm
- マルチモード(MM): 473 nm
- 偏波保持(PM): 635 nm
- FC/PCのシングルモードまたはマルチモードファイバーインターフェイス
- 出力レベルはノブの回転またはBNC変調入力端子への入力電圧で調整可能
- 安定で低ノイズな一定出力動作
- インターロック回路は2.5 mmモノラルジャックに接続

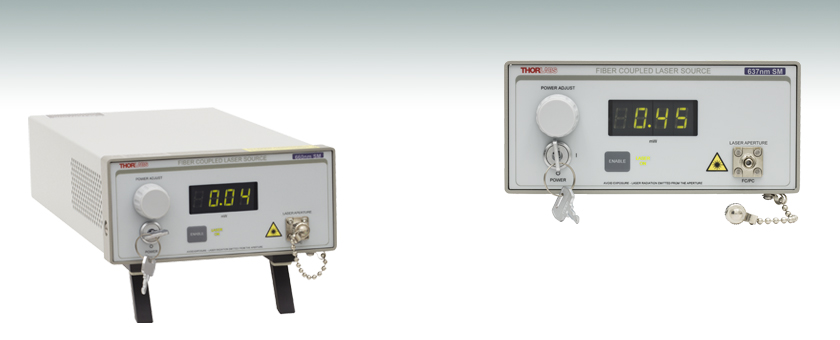

当社では、可視域のスペクトルで発光するシングルモードファイバ、マルチモードファイバ、もしくは偏波保持ファイバ出力のレーザ光源をご用意しています。このベンチトップ型のレーザ光源には、いずれもピグテール付きファブリペロー型半導体レーザと電流コントローラが内蔵されています。
レーザ光源の前面パネルには、出力値(mW)を表示するデイスプレイ、ON/OFFキー、Enableボタン、そしてレーザ出力調整ノブがあります。背面パネルには、外部からのDCまたは正弦波電圧信号によって半導体レーザの駆動電流を制御するためのBNC入力端子と、インターロック用リモートコントロール入力端子が付いています。
当社のシングルチャンネルベンチトップ型レーザ光源の全てのラインナップは右の表をご参照ください。
Single Mode Source Specifications | |||||||
---|---|---|---|---|---|---|---|
Item # | S1FC405 | S1FC635 | S1FC637 | S1FC660 | S1FC675 | ||
Wavelength | Minimum | 395 nm | 625 nm | 630 nm | 645 nm | 660 nm | |
Typical | 405 nm | 635 nm | 637 nm | 660 nm | 675 nm | ||
Maximum | 415 nm | 640 nm | 645 nm | 665 nm | 680 nm | ||
Spectruma | |||||||
Minimum Full Output Power | 8.0 mW | 2.5 mW | 8.0 mW | 15.0 mW | 2.5 mW | ||
Setpoint Resolution | 0.01 mW | 0.01 mW | 0.01 mW | 0.01 mW | 0.01 mW | ||
Laser Class | 3B | 3R | 3B | 3B | 3R | ||
Fiber | |||||||
Fiber Type | S405-XP | SM600 | SM600 | SM600 | SM600 | ||
Mode Field Diameterb | 3.3 µm @ 405 nm | 3.6 - 5.3 µm | 3.6 - 5.3 µm | 3.6 - 5.3 µm | 3.6 - 5.3 µm | ||
Numerical Aperture | 0.12 | 0.10 - 0.14 | 0.10 - 0.14 | 0.10 - 0.14 | 0.10 - 0.14 | ||
Output Fiber Connector | FC/PC, Wide 2.1 mm Key Compatible | ||||||
Electrical | |||||||
Power Stability | 15 min: ±0.05 dB, 24 hr: ±0.1 dB (After 1 hr Warm-Up at 25 ± 10 °C Ambient) | ||||||
Display Accuracy | ±10% | ||||||
Adjustment Range | ~0 mW to Full Power | ||||||
Input Power | 115 VAC / 230 VAC (Switch Selectable) 50 - 60 Hz | ||||||
Modulation Input | 0 - 5 V = 0 - Full Power, DC or Sine Wave Input Only | ||||||
Modulation Bandwidth | 5 kHz Full Depth of Modulation 30 kHz Small Signal Modulation | ||||||
Environmental | |||||||
Operating Temperature | 15 to 35 °C | ||||||
Storage Temperature | 0 to 50 °C |
Multimode Source Specifications | |
---|---|
Item # | S1FC473MM |
Wavelength | 473 nm |
Maximum Output Powera | 50.0 mW |
Stability | 15 min: ±0.05 dB, 24 hr: ±0.1 dB (After 1 hr Warm-Up at 25 ± 10 °C Ambient) |
Display Accuracy | ±10 % |
Setpoint Resolution | 0.1 mW |
Adjustment Range | ~0 mW to Full Power |
AC Input | 115 / 230 VAC (Switch Selectable) 50 - 60 Hz |
Modulation Input | 0 - 5 V = 0 - Full Power, DC or Sine Wave Input Only |
Modulation Bandwidth | 5 kHz Full Depth of Modulation 30 kHz Small Signal Modulation |
Fiber | FG105UCA |
Environmental | |
Operating Temperature | 15 to 35 °C |
Storage Temperature | 0 to 50 °C |
Polarization-Maintaining Source Specifications | ||||
---|---|---|---|---|
Item # | S1FC635PM | |||
Wavelengtha | 635 nm | |||
Minimum Full Output Power | 2.5 mW | |||
Stability | 15 min: ±0.05 dB, 24 hr:±0.1 dB (After 1 hr Warm-Up at 25 ± 10 °C Ambient) | |||
Display Accuracy | ±10% | |||
Setpoint Resolution | 0.01 mW | |||
Adjustment Range | ~0 mW to Full Power | |||
Minimum Polarization Extinction Ratio | 15 dB | |||
Environmental | ||||
Operating Temperature | 15 to 35 °C | |||
Storage Temperature | 0 to 50 °C | |||
AC Input | 115 VAC / 230 VAC (Switch Selectable) 50 - 60 Hz | |||
Modulation Input | 0 - 5 V = 0 - Full Power, DC or Sine Wave Input Only | |||
Modulation Bandwidth | 5 kHz Full Depth of Modulation 30 kHz Small Signal Modulation | |||
Fiber | PM630-HP |
変調入力端子
BNCメス型
0~5 Vまで、50 Ω
リモートインターロック入力端子
2.5 mmモノラルジャック
レーザのON状態をENABLEとするには、端子間を付属のプラグまたは外部スイッチのようなユーザ所有のデバイスで短絡する必要があります。
Laser Safety and Classification
Safe practices and proper usage of safety equipment should be taken into consideration when operating lasers. The eye is susceptible to injury, even from very low levels of laser light. Thorlabs offers a range of laser safety accessories that can be used to reduce the risk of accidents or injuries. Laser emission in the visible and near infrared spectral ranges has the greatest potential for retinal injury, as the cornea and lens are transparent to those wavelengths, and the lens can focus the laser energy onto the retina.
Safe Practices and Light Safety Accessories
- Laser safety eyewear must be worn whenever working with Class 3 or 4 lasers.
- Regardless of laser class, Thorlabs recommends the use of laser safety eyewear whenever working with laser beams with non-negligible powers, since metallic tools such as screwdrivers can accidentally redirect a beam.
- Laser goggles designed for specific wavelengths should be clearly available near laser setups to protect the wearer from unintentional laser reflections.
- Goggles are marked with the wavelength range over which protection is afforded and the minimum optical density within that range.
- Laser Safety Curtains and Laser Safety Fabric shield other parts of the lab from high energy lasers.
- Blackout Materials can prevent direct or reflected light from leaving the experimental setup area.
- Thorlabs' Enclosure Systems can be used to contain optical setups to isolate or minimize laser hazards.
- A fiber-pigtailed laser should always be turned off before connecting it to or disconnecting it from another fiber, especially when the laser is at power levels above 10 mW.
- All beams should be terminated at the edge of the table, and laboratory doors should be closed whenever a laser is in use.
- Do not place laser beams at eye level.
- Carry out experiments on an optical table such that all laser beams travel horizontally.
- Remove unnecessary reflective items such as reflective jewelry (e.g., rings, watches, etc.) while working near the beam path.
- Be aware that lenses and other optical devices may reflect a portion of the incident beam from the front or rear surface.
- Operate a laser at the minimum power necessary for any operation.
- If possible, reduce the output power of a laser during alignment procedures.
- Use beam shutters and filters to reduce the beam power.
- Post appropriate warning signs or labels near laser setups or rooms.
- Use a laser sign with a lightbox if operating Class 3R or 4 lasers (i.e., lasers requiring the use of a safety interlock).
- Do not use Laser Viewing Cards in place of a proper Beam Trap.
Laser Classification
Lasers are categorized into different classes according to their ability to cause eye and other damage. The International Electrotechnical Commission (IEC) is a global organization that prepares and publishes international standards for all electrical, electronic, and related technologies. The IEC document 60825-1 outlines the safety of laser products. A description of each class of laser is given below:
Class | Description | Warning Label |
---|---|---|
1 | This class of laser is safe under all conditions of normal use, including use with optical instruments for intrabeam viewing. Lasers in this class do not emit radiation at levels that may cause injury during normal operation, and therefore the maximum permissible exposure (MPE) cannot be exceeded. Class 1 lasers can also include enclosed, high-power lasers where exposure to the radiation is not possible without opening or shutting down the laser. | |
1M | Class 1M lasers are safe except when used in conjunction with optical components such as telescopes and microscopes. Lasers belonging to this class emit large-diameter or divergent beams, and the MPE cannot normally be exceeded unless focusing or imaging optics are used to narrow the beam. However, if the beam is refocused, the hazard may be increased and the class may be changed accordingly. | |
2 | Class 2 lasers, which are limited to 1 mW of visible continuous-wave radiation, are safe because the blink reflex will limit the exposure in the eye to 0.25 seconds. This category only applies to visible radiation (400 - 700 nm). | |
2M | Because of the blink reflex, this class of laser is classified as safe as long as the beam is not viewed through optical instruments. This laser class also applies to larger-diameter or diverging laser beams. | |
3R | Class 3R lasers produce visible and invisible light that is hazardous under direct and specular-reflection viewing conditions. Eye injuries may occur if you directly view the beam, especially when using optical instruments. Lasers in this class are considered safe as long as they are handled with restricted beam viewing. The MPE can be exceeded with this class of laser; however, this presents a low risk level to injury. Visible, continuous-wave lasers in this class are limited to 5 mW of output power. | |
3B | Class 3B lasers are hazardous to the eye if exposed directly. Diffuse reflections are usually not harmful, but may be when using higher-power Class 3B lasers. Safe handling of devices in this class includes wearing protective eyewear where direct viewing of the laser beam may occur. Lasers of this class must be equipped with a key switch and a safety interlock; moreover, laser safety signs should be used, such that the laser cannot be used without the safety light turning on. Laser products with power output near the upper range of Class 3B may also cause skin burns. | |
4 | This class of laser may cause damage to the skin, and also to the eye, even from the viewing of diffuse reflections. These hazards may also apply to indirect or non-specular reflections of the beam, even from apparently matte surfaces. Great care must be taken when handling these lasers. They also represent a fire risk, because they may ignite combustible material. Class 4 lasers must be equipped with a key switch and a safety interlock. | |
All class 2 lasers (and higher) must display, in addition to the corresponding sign above, this triangular warning sign. |
