Products Home多結晶CVDダイヤモンドウィンドウ
- Diamonds Grown by Chemical Vapor Deposition
- Broad Transmission Spectrum from 220 nm to >50 µm
- Available with 5.0 mm or 10.0 mm Diameters
WGM0505
Ø5.0 mm, 0.5 mm Thick
Polycrystalline CVD Window
WGM1005
Ø10.0 mm, 0.5 mm Thick
Polycrystalline CVD Window
Please Wait

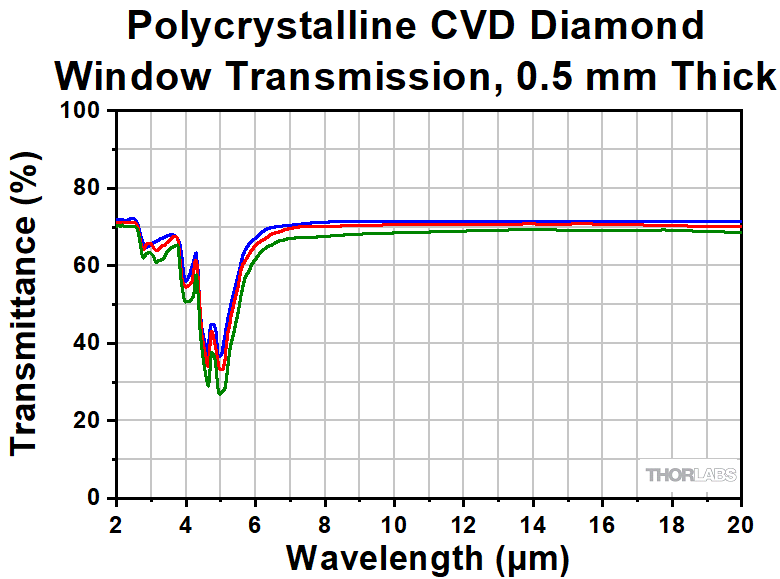

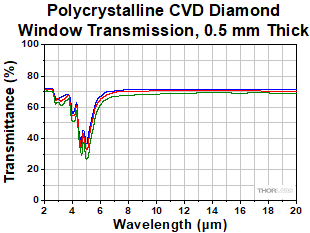

Click to Enlarge

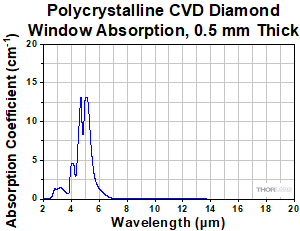

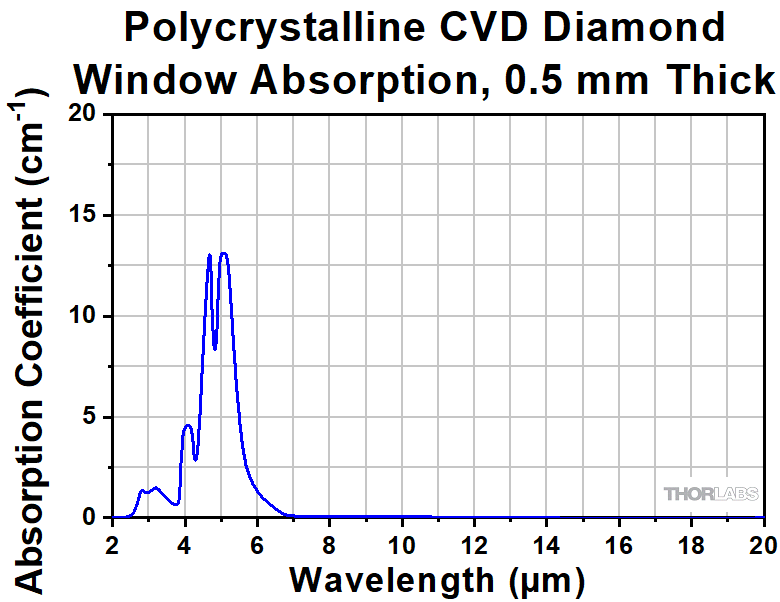

吸収係数の分光特性
| Flat Window Selection Guide | |
|---|---|
| Wavelength Range | Substrate Material |
| 180 nm - 8.0 μm | Calcium Fluoride (CaF2) |
| 185 nm - 2.1 μm | UV Fused Silica |
| 200 nm - 5.0 μm | Sapphire |
| 200 nm - 6.0 μm | Magnesium Fluoride (MgF2) |
| 220 nm to >50 µm | CVD Diamond Windows |
| 230 nm - 1.1 µm | UV Fused Silica, Textured Antireflective Surface |
| 250 nm - 1.6 µm | UV Fused Silica, for 45° AOI |
| 250 nm - 26 µm | Potassium Bromide (KBr) |
| 300 nm - 3 µm | Infrasil® |
| 350 nm - 2.0 μm | N-BK7 |
| 600 nm - 16 µm | Zinc Selenide (ZnSe) |
| 1 - 1.7 µm | Infrasil®, Textured Antireflective Surface |
| 1.2 - 8.0 μm | Silicon (Si) |
| 1.9 - 16 μm | Germanium (Ge) |
| 2 - 5 μm | Barium Fluoride (BaF2) |
| V-Coated Laser Windows | |
特長
- Ø5.0 mmまたはØ10.0 mm
- 厚さ0.5 mm
- 化学気相成長法(CVD)により形成された多結晶ダイヤモンド
- 広い透過スペクトル幅：220 nm～50 µm以上
- 高い熱伝導率
- >2200 Wm-1K-1 ＠300 K
- >1600 Wm-1K-1 ＠425 K
この多結晶CVDダイヤモンドウィンドウは、要求条件の厳しい光学システムにご使用いただくのに適した製品です。ダイヤモンドは広い透過スペクトル幅(220 nm～50 µm以上)と高い熱伝導率(300 Kにおいて>2200 Wm-1K-1以上、425 Kにおいて>1600 Wm-1K-1以上)を有します。ダイヤモンドウィンドウは吸収係数が小さいため、高パワーのレーザ光をウィンドウに損傷を与えることなく透過させることができます。ダイヤモンドは生体適合性があるため、医療用としてもご使用いただける場合があります。また透過スペクトル幅が広いため、分光システム用としては大変有効にご使用いただけます。
高真空対応のØ10 mm CVDダイヤモンドウィンドウ付きØ70 mm(Ø2.75インチ) (DN40) CFフランジでは、こちらのウィンドウが使用されています。詳細については製品紹介ページをご覧ください。
当社では、様々なレーザや産業等においてご使用いただくために、ダイヤモンド以外を基材に用いた精密ウィンドウもご用意しております。ラインナップについては、右下のFlat Window Selection Guideの表をご覧ください。当社では、一般的に用いられるレーザの波長を中心波長としてARコーティングしたレーザーウィンドウや、P偏光の反射光を除去するように設計されたブリュースターウィンドウもご用意しております。
| Item # | WGM0505 | WGM1005 |
|---|---|---|
| Diameter | 5.0 mm | 10.0 mm |
| Diameter Tolerance | ±0.1 mm | |
| Thickness | 0.5 mm | |
| Thickness Tolerance | ±0.05 mm | |
| Flatness | Three Fringes at 632.8 nm | Five Fringes at 632.8 nm |
| Laser Kerf | ≤ 3° ± 2° | |
| Egde Features | < 0.2 mm | |
| Parallelism | < 0.4 µm/mm | |
| Roughness (over 1 mm2) | < 15 nm | |
| Refractive Index | 2.376 (at 10.6 µm), 2.386 (at 1550 nm), 2.392 (at 1064 nm) | |
| Young's Modulus | 1050 GPa | |
| Fracture Stress | 400 MPa | |
| Hardness | 81 ± 18 GPa | |
| Thermal Expansion Coefficient | 1.0 ppmK-1 (at 300 K), 4.4 ppmK-1 (at 1000 K) | |
| Thermal Conductivity | > 2200 Wm-1K-1 (at 300 K), > 1600 Wm-1K-1 (at 425 K) | |
| Substrate | CVD Diamond | |
| Absorption Coefficient | < 0.07 cm-1 (10.6 µm), 0.12 cm-1 (at 1064 nm) | |
